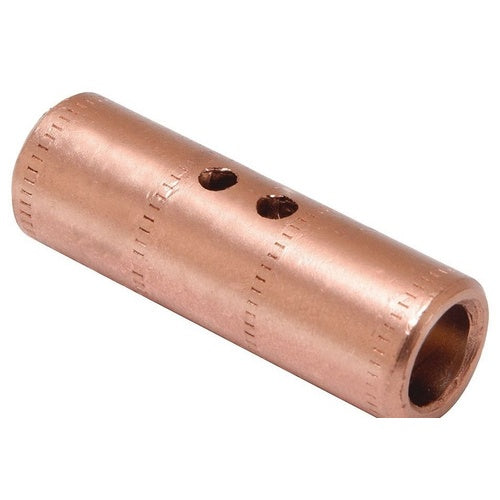

Burndy YGHS28 4/0 Compression Ground Splice

Overview

Burndy YGHS28 4/0 Compression Ground Splice

Product Specifications

• UPC: 78181022047
• Outer Diameter: 0.89 Inch
• Body Material: Copper
• Approval: UL 467, UL 468-A, UL 468-B, CSA
• Additional Information: RoHS Compatible; Die Index 17; Application Direct Burial in Earth/Concrete
• Catalog Number: YGHS28
• Brand Name: HYGROUND[R], HYLINK[TM]
• Model: YGHS
• Type: Centre Cable Stop
• Conductor Size: 4/0 AWG Stranded
• Conductor Material: Copper
• Barrel Type: Standard
• Length: 2.59 Inch
• Catalog Description: HYGROUND GROUNDING IRREVERSIBLE COMPRESSION SPLICE; HEAVY DUTY; ACCOMMODATES: 4/0 AWG; 2.59" LENGTH
• Category: Large Terminals & Connectors
• Full Technical Description: Centre Cable Stop Type; 2.59 Inch; 0.89 Inch Outer Diameter; Copper Conductor Material; UL 467, UL 468-A, UL 468-B, CSA Approval; Copper Body Material; 4/0 AWG Stranded Conductor Size; Standard Barrel Type; HYGROUND[R], HYLINK[TM] Brand; RoHS Compatible; Die Index 17; Application Direct Burial in Earth/Concrete; YGHS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810220474
• SKU Name: bur yghs28

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
