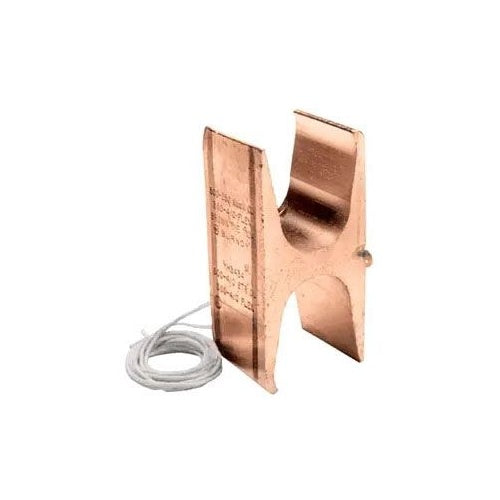

Burndy YH292C Copper H-Tap 250-#2 W/O Cover

Overview

Burndy YH292C Copper H-Tap 250-#2 W/O Cover

Product Specifications

• UPC: 78181001387
• Minimum Tap Conductor Size: 14 AWG (TAP2), 14 AWG (Flex, TAP2), 8 AWG (Flex, TAP1), 6 AWG Solid/Stranded (TAP1)
• Maximum Tap Conductor Size: 8 AWG (TAP2), 8 AWG (Flex, TAP2), 2 AWG (Flex, TAP1), 2 AWG Solid/Stranded (TAP1)
• Die Index: 654
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Color Code Purple
• Catalog Number: YH292C
• Brand Name: CRIMPIT[TM]
• Model: YH
• Shape: H
• Number Of Taps: 2
• Conductor Material: Copper
• Minimum Run Conductor Size: 2 AWG, 2 AWG (Flex)
• Maximum Run Conductor Size: 4/0 AWG (Flex), 250 KCMIL
• Catalog Description: COPPER COMPRESSION H TAP, 250 KCMIL-2 AWG (MAIN), 2-6 AWG (TAP 1), 8-14 AWG (TAP 2), TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: 2 AWG, 2 AWG (Flex) min. Run Conductor Size; 4/0 AWG (Flex), 250 kcmil Max. Run Conductor Size; 14 AWG (TAP2), 14 AWG (Flex, TAP2), 8 AWG (Flex, TAP1), 6 AWG Solid/Stranded (TAP1) min. Tap Conductor Size; 8 AWG (TAP2), 8 AWG (Flex, TAP2), 2 AWG (Flex, TAP1), 2 AWG Solid/Stranded (TAP1) Max. Tap Conductor Size; H Shape; Copper Conductor Material; UL, CSA Approval; Electro Tin Plated Copper Body Material; 654 Die Index; 2 Tap(S); CRIMPIT[TM] Brand; RoHS Compatible; Color Code Purple; YH Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810013878
• SKU Name: bur yh292c
