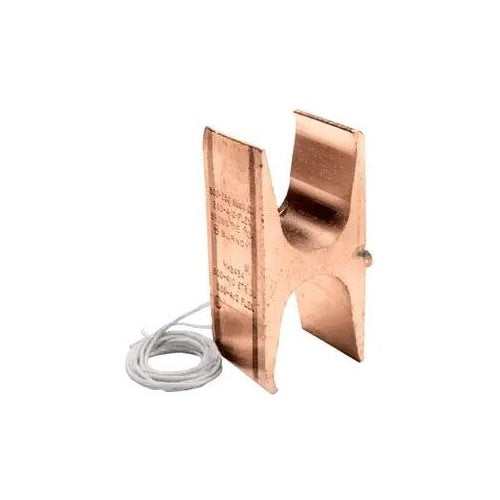

Burndy YH298C Copper H-Tap 250-#8 W/O Cover

Overview

Burndy YH298C Copper H-Tap 250-#8 W/O Cover

Product Specifications

• UPC: 78181001391
• Minimum Tap Conductor Size: 14 AWG
• Maximum Tap Conductor Size: 8 AWG
• Die Index: 654
• Body Material: Electro Tin Plated Copper
• Approval: UL 467, CSA
• Additional Information: RoHS Compatible; Size 0.9 Inch L x 0.9 Inch W x 1.52 Inch H; Wire Strip Length 1-1/16 Inch; Color Code Purple
• Catalog Number: YH298C
• Brand Name: CRIMPIT[TM]
• Model: YH
• Shape: H
• Number Of Taps: 2
• Conductor Material: Copper
• Minimum Run Conductor Size: 2 AWG
• Maximum Run Conductor Size: 250 KCMIL
• Catalog Description: COPPER COMPRESSION H TAP, 250 KCMIL-2 AWG (MAIN ), 8-14 AWG (TAP 1 & TAP 2), TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: 2 AWG min. Run Conductor Size; 250 kcmil Max. Run Conductor Size; 14 AWG min. Tap Conductor Size; 8 AWG Max. Tap Conductor Size; H Shape; Copper Conductor Material; UL 467, CSA Approval; Electro Tin Plated Copper Body Material; 654 Die Index; 2 Tap(S); CRIMPIT[TM] Brand; RoHS Compatible; Size 0.9 Inch L X 0.9 Inch W X 1.52 Inch H; Wire Strip Length 1-1/16 Inch; Color Code Purple; YH Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810013915
• SKU Name: bur yh298c

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
