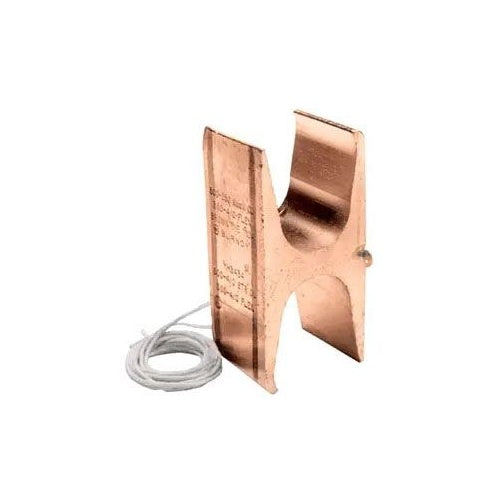

Burndy YH3429 Copper H-Tap 500-250 W/O Cover

Overview

Burndy YH3429 Copper H-Tap 500-250 W/O Cover

Product Specifications

• UPC: 78181001389
• Minimum Tap Conductor Size: 14 AWG (TAP3), 14 AWG (Flex, TAP3), 8 AWG (Flex, TAP2), 6 AWG Solid/Stranded (TAP2), 1/0 AWG (TAP1), 1/0 AWG (Flex, TAP1)
• Maximum Tap Conductor Size: 8 AWG (TAP3), 8 AWG (Flex, TAP3), 1 AWG (Flex, TAP2), 1 AWG Solid/Stranded (TAP2), 4/0 AWG (Flex, TAP1), 250 KCMIL (TAP1)
• Die Index: 1104
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Color Code Brown
• Catalog Number: YH3429
• Brand Name: CRIMPIT[TM]
• Model: YH
• Shape: H
• Number Of Taps: 3
• Conductor Material: Copper
• Minimum Run Conductor Size: 4/0 AWG, 4/0 AWG (Flex)
• Maximum Run Conductor Size: 350 KCMIL (Flex), 500 KCMIL
• Catalog Description: COPPER COMPRESSION H TAP, 500 KCMIL-4/0 AWG (MAIN), 250 KCMIL-1/0 AWG (TAP 1), 1-6 AWG (TAP 2), 8-14 AWG (TAP 3), TIN PLATED.
• Category: Large Terminals & Connectors
• Full Size Image: ht
• Full Technical Description: 4/0 AWG, 4/0 AWG (Flex) min. Run Conductor Size; 350 kcmil (Flex), 500 kcmil Max. Run Conductor Size; 14 AWG (TAP3), 14 AWG (Flex, TAP3), 8 AWG (Flex, TAP2), 6 AWG Solid/Stranded (TAP2), 1/0 AWG (TAP1), 1/0 AWG (Flex, TAP1) min. Tap Conductor Size; 8 AWG (TAP3), 8 AWG (Flex, TAP3), 1 AWG (Flex, TAP2), 1 AWG Solid/Stranded (TAP2), 4/0 AWG (Flex, TAP1), 250 kcmil (TAP1) Max. Tap Conductor Size; H Shape; Copper Conductor Material; UL, CSA Approval; Electro Tin Plated Copper Body Material; 1104 Die Index; 3 Tap(S); CRIMPIT[TM] Brand; RoHS Compatible; Color Code Brown; YH Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810013892
• SKU Name: bur yh3429

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
