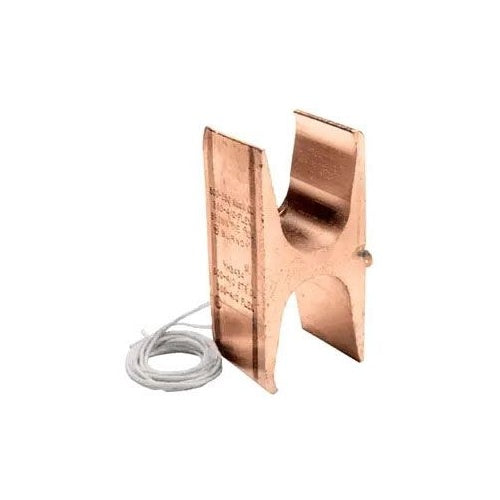

Burndy YH3939 Copper H-Tap 750-750 W/O Cover

Overview

Burndy YH3939 Copper H-Tap 750-750 W/O Cover

Product Specifications

• UPC: 78181001384
• Minimum Tap Conductor Size: 350 KCMIL, 350 KCMIL (Flex)
• Maximum Tap Conductor Size: 550 KCMIL (Flex), 750 KCMIL
• Die Index: K-R
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Color Code Yellow
• Catalog Number: YH3939
• Brand Name: CRIMPIT[TM]
• Model: YH
• Shape: H
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 500 KCMIL, 500 KCMIL (Flex)
• Maximum Run Conductor Size: 550 KCMIL (Flex), 750 KCMIL
• Catalog Description: COPPER COMPRESSION H TAP, 750-500 KCMIL (MAIN), 750-350 KCMIL (TAP), TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: 500 kcmil, 500 kcmil (Flex) min. Run Conductor Size; 550 kcmil (Flex), 750 kcmil Max. Run Conductor Size; 350 kcmil, 350 kcmil (Flex) min. Tap Conductor Size; 550 kcmil (Flex), 750 kcmil Max. Tap Conductor Size; H Shape; Copper Conductor Material; UL, CSA Approval; Electro Tin Plated Copper Body Material; K-R Die Index; 1 Tap(S); CRIMPIT[TM] Brand; RoHS Compatible; Color Code Yellow; YH Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810013847
• SKU Name: bur yh3939

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
