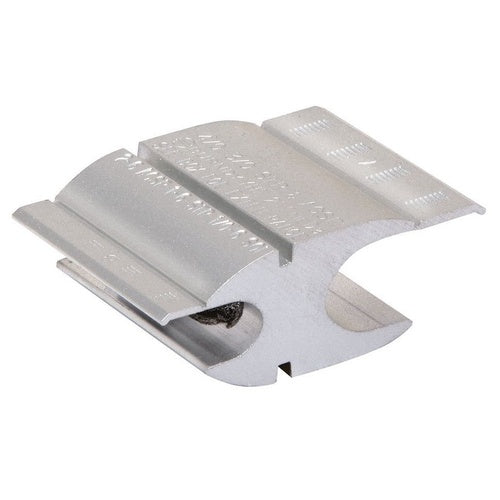

Burndy YHO-150 2/0 Aluminum/Copper Tap Connector

Overview

Burndy YHO-150 2/0 Aluminum/Copper Tap Connector

Product Specifications

• UPC: 78181013910
• Maximum Tap Conductor Size: 1/0 AWG Solid, 1 AWG Stranded, 2 AWG (ACSR), 1 AWG (Compact ACSR/Copper/Aluminum)
• Die Index: O
• Body Material: Aluminum
• Approval: RUS
• Additional Information: RoHS Compliant
• Catalog Number: YHO150
• Brand Name: HYCRIMP[TM]
• Model: YHO
• Shape: H
• Conductor Material: Copper/Aluminum/ACSR/AAAC/Steel
• Minimum Run Conductor Size: 1 AWG Solid, 3 AWG Stranded, 3 AWG (ACSR), 2 AWG (Compact ACSR), 2 AWG (Compact Copper/Aluminum)
• Maximum Run Conductor Size: 2/0 AWG Solid/Stranded, 1/0 AWG (ACSR), 1/0 AWG (Compact ACSR), 2/0 AWG (Compact Copper/Aluminum)
• Minimum Tap Conductor Size: 6 AWG Solid/Stranded, 6 AWG (ACSR), 6 AWG (Compact ACSR/Copper/Aluminum)
• Catalog Description: AL OVERHEAD COMPRESSION TAP CONNECTOR, ACCOMMODATES: AL, CU, ACSR, AAAC AND STEEL, LENGTH: 1.50 IN.
• Category: Large Terminals & Connectors
• Full Technical Description: 1 AWG Solid, 3 AWG Stranded, 3 AWG (ACSR), 2 AWG (Compact ACSR), 2 AWG (Compact Copper/Aluminum) min. Run Conductor Size; 2/0 AWG Solid/Stranded, 1/0 AWG (ACSR), 1/0 AWG (Compact ACSR), 2/0 AWG (Compact Copper/Aluminum) Max. Run Conductor Size; 6 AWG Solid/Stranded, 6 AWG (ACSR), 6 AWG (Compact Acsr/Copper/Aluminum) min. Tap Conductor Size; 1/0 AWG Solid, 1 AWG Stranded, 2 AWG (ACSR), 1 AWG (Compact Acsr/Copper/Aluminum) Max. Tap Conductor Size; H Shape; Copper/Aluminum/Acsr/Aaac/Steel Conductor Material; RUS Approval; Aluminum Body Material; O Die Index; HYCRIMP[TM] Brand; RoHS Compliant; YHO Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810139103
• SKU Name: bur yho150
