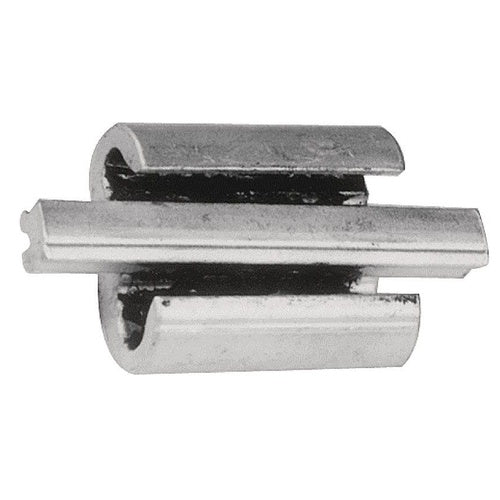

Burndy YP27AU2 3/0 Aluminum/Copper Tap Connector

Overview

Burndy YP27AU2 3/0 Aluminum/Copper Tap Connector

Product Specifications

• UPC: 78181013398
• Stranded Tap Conductor Size: 3 AWG, 2 AWG, 1 AWG; 3 AWG, 2 AWG, 1 AWG (ALUMINUM, COMPRESSED)
• Acsr Tap Conductor Size: 4 AWG, 3 AWG, 2 AWG; 4 AWG, 3 AWG, 2 AWG, 1 AWG (COMPRESSED)
• Die Index: D3
• Body Material: ALUMINUM
• Catalog Number: YP27AU2
• Model: YP-U
• Shape: 3
• Conductor Material: ACSR/ALUMINUM/COPPER
• Solid Run Conductor Size: 2/0 AWG, 3/0 AWG, 4/0 AWG
• Stranded Run Conductor Size: 1/0 AWG, 2/0 AWG, 3/0 AWG; 2/0 AWG, 3/0 AWG (ALUMINUM, COMPRESSED)
• Acsr Run Conductor Size: 1/0 AWG, 2/0 AWG; 1/0 AWG, 2/0 AWG, 3/0 AWG (COMPRESSED)
• Solid Tap Conductor Size: 2 AWG, 1 AWG, 1/0 AWG
• Catalog Description: WIDE RANGE, UNIVERSAL AND REVERSIBLE, FIGURE 3 SHAPED ALUMINUM CONNECTOR WITH ADJUSTABLE OVERHANGING SPACER THAT SEPARATES CONDUCTORS,CONDUCTOR GROOVE A SOLID:2/0, 3/0, 4/0.
• Category: Large Terminals & Connectors
• Full Technical Description: 3 Shape; Acsr/Aluminum/Copper Conductor Material; Aluminum Body Material; D3 Die Index; 1/0 AWG, 2/0 AWG; 1/0 AWG, 2/0 AWG, 3/0 AWG (Compressed) ACSR Run Conductor Size; 4 AWG, 3 AWG, 2 AWG; 4 AWG, 3 AWG, 2 AWG, 1 AWG (Compressed) ACSR Tap Conductor Size; 2/0 AWG, 3/0 AWG, 4/0 AWG Solid Run Conductor Size; 2 AWG, 1 AWG, 1/0 AWG Solid Tap Conductor Size; 1/0 AWG, 2/0 AWG, 3/0 AWG; 2/0 AWG, 3/0 AWG (Aluminum, Compressed) Stranded Run Conductor Size; 3 AWG, 2 AWG, 1 AWG; 3 AWG, 2 AWG, 1 AWG (Aluminum, Compressed) Stranded Tap Conductor Size; YP-U Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Cable To Cable Compression Overhead Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810133989
• SKU Name: bur yp27au2
