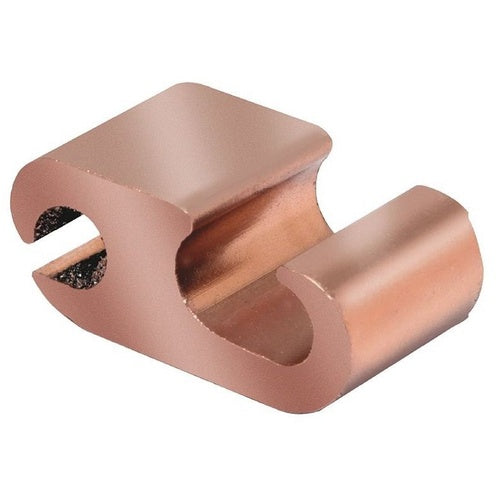

Burndy YP29C26 250Mcm Copper Tap Connector

Overview

Burndy YP29C26 250Mcm Copper Tap Connector

Product Specifications

• UPC: 78181011800
• Stranded Tap Conductor Size: 2/0 AWG
• Die Index: D
• Body Material: Copper
• Additional Information: RoHS Compatible
• Catalog Number: YP29C26
• Brand Name: CRIMPIT[TM]
• Model: YP-C
• Shape: 6
• Conductor Material: Copper
• Solid Run Conductor Size: 1/0 AWG
• Stranded Run Conductor Size: 250 KCMIL
• Solid Tap Conductor Size: 4 AWG
• Catalog Description: FIGURE 6 - SHAPED, WIDE RANGE-TAKING CU COMPRESSION TAP CONNECTOR FOR PRIMARY SERVICE TAPS AND SECONDARY SERVICE DROPS, WIDTH: .75 IN, DIE INDEX: D.
• Category: Large Terminals & Connectors
• Full Technical Description: 6 Shape; Copper Conductor Material; Copper Body Material; D Die Index; 1/0 AWG Solid Run Conductor Size; 4 AWG Solid Tap Conductor Size; 250 kcmil Stranded Run Conductor Size; 2/0 AWG Stranded Tap Conductor Size; CRIMPIT[TM] Brand; RoHS Compatible; YP-C Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Cable to Cable Compression Overhead Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810118009
• SKU Name: bur yp29c26
