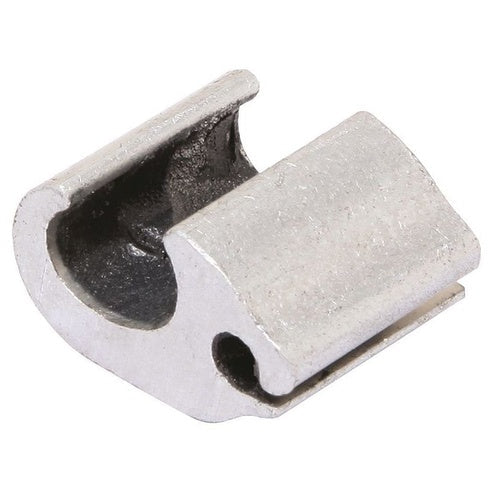

Burndy YPC28U26 4/0 Aluminum/Copper Tap Connector

Overview

Burndy YPC28U26 4/0 Aluminum/Copper Tap Connector

Product Specifications

• Catalog Description: FIGURE 6 SHAPE CONNECTOR SEPARATES RUN AND TAP WIRES AND MINIMIZES GALVANIC CORROSION OF CONDUCTORS,RUN ACSR,5005:1/0-4/0.
• Category: Large Terminals & Connectors
• Full Technical Description: 1/0 AWG (Acsr/5005), 1/0 AWG Stranded (Copper/Aluminum) min. Run Conductor Size; 4/0 AWG (Acsr/5005), 4/0 AWG Stranded (Copper/Aluminum) Max. Run Conductor Size; 4 AWG (Acsr/5005), 3 AWG Solid (Copper/Aluminum), 2/0 AWG Stranded (Copper/Aluminum) min. Tap Conductor Size; 3 AWG Solid (Copper/Aluminum), 1/0 AWG (Acsr/5005), 2/0 AWG Stranded (Copper/Aluminum) Max. Tap Conductor Size; 6 Shape; Copper/Aluminum/Acsr/6201/5005 Conductor Material; D3 Die Index; 1 Tap(S); YPC-U Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810136508
• SKU Name: bur ypc28u26

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
