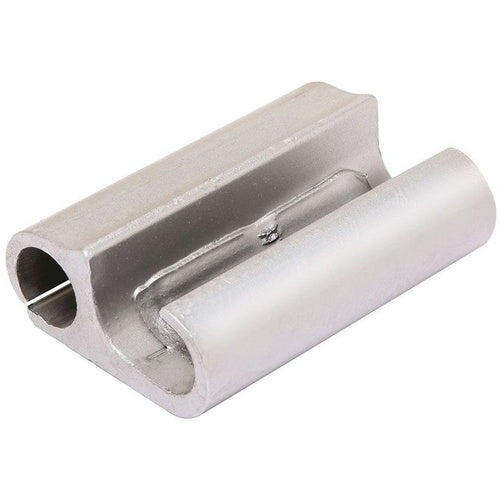

Burndy YPC28U28 4/0 Aluminum/Copper Tap Connector

Overview

Burndy YPC28U28 4/0 Aluminum/Copper Tap Connector

Product Specifications

• UPC: 78181013668
• Solid Tap Conductor Size: 4/0 AWG (Aluminum/Copper), 4/0 AWG, 250 KCMIL, 266.8 KCMIL (Aluminum, Compressed)
• Stranded Tap Conductor Size: 2/0 to 4/0 AWG (Copper/Aluminum), 3/0 AWG, 4/0 AWG, 250 KCMIL, 266.8 KCMIL (Aluminum, Compressed)
• Acsr Tap Conductor Size: 2/0 - 4/0 AWG Stranded (ACSR), 3/0 AWG, 4/0 AWG, 266.8 KCMIL (Compressed)
• Die Index: D3
• Body Material: Aluminum
• Additional Information: RoHS Compatible; Length 2-3/4 Inch
• Catalog Number: YPC28U28
• Brand Name: CRIMPIT[TM]
• Model: YPC-U
• Shape: 6
• Conductor Material: Aluminum/Copper/ACSR
• Solid Run Conductor Size: 4/0 AWG(Aluminum/Copper), 4/0 AWG, 250 KCMIL, 266.8 KCMIL (Aluminum, Compressed)
• Stranded Run Conductor Size: 3/0 to 4/0 AWG(Aluminum/Copper), 4/0 AWG, 250 KCMIL, 266.8 KCMIL (Aluminum, Compressed)
• Acsr Run Conductor Size: 3/0 to 4/0 AWG Stranded(ACSR), 3/0 AWG, 4/0 AWG, 266.8 KCMIL (Compressed)
• Catalog Description: FIGURE 6 SHAPE CONNECTOR SEPARATES RUN AND TAP WIRES AND MINIMIZES GALVANIC CORROSION OF CONDUCTORS,RUN,AL AND CU:3/0 - 4/0 STR.4/0 SOL. & 4/0, 250, 266.8 ALUM.COMPRESSED.
• Category: Large Terminals & Connectors
• Full Technical Description: 6 Shape; Aluminum/Copper/Acsr Conductor Material; Aluminum Body Material; D3 Die Index; 3/0 to 4/0 AWG Stranded(ACSR), 3/0 AWG, 4/0 AWG, 266.8 kcmil (Compressed) ACSR Run Conductor Size; 2/0 - 4/0 AWG Stranded (ACSR), 3/0 AWG, 4/0 AWG, 266.8 kcmil (Compressed) ACSR Tap Conductor Size; 4/0 AWG(Aluminum/Copper), 4/0 AWG, 250 kcmil, 266.8 kcmil (Aluminum, Compressed) Solid Run Conductor Size; 4/0 AWG (Aluminum/Copper), 4/0 AWG, 250 kcmil, 266.8 kcmil (Aluminum, Compressed) Solid Tap Conductor Size; 3/0 to 4/0 AWG(Aluminum/Copper), 4/0 AWG, 250 kcmil, 266.8 kcmil (Aluminum, Compressed) Stranded Run Conductor Size; 2/0 to 4/0 AWG (Copper/Aluminum), 3/0 AWG, 4/0 AWG, 250 kcmil, 266.8 kcmil (Aluminum, Compressed) Stranded Tap Conductor Size; CRIMPIT[TM] Brand; RoHS Compatible; Length 2-3/4 Inch; YPC-U Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Cable to Cable Compression Overhead Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810136683
• SKU Name: bur ypc28u28
