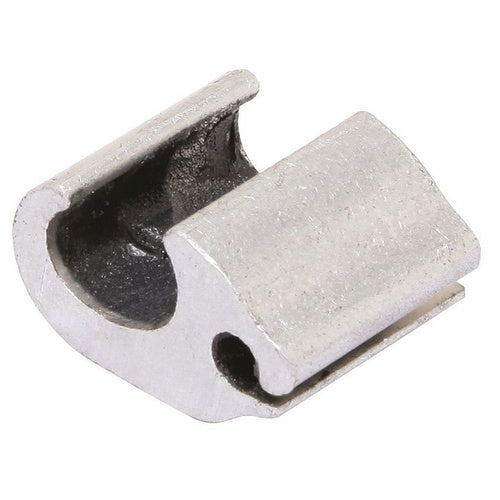

Burndy YPC28U4 4/0 Aluminum/Copper Tap Connector

Overview

Burndy YPC28U4 4/0 Aluminum/Copper Tap Connector

Product Specifications

• Catalog Description: FIGURE 6 SHAPE CONNECTOR SEPARATES RUN AND TAP WIRES AND MINIMIZES GALVANIC CORROSION OF CONDUCTORS,RUN,AL AND CU:3/0 - 4/0 STR. & 4/0 - 250, 266.8 ALUM. COMPRESSED.
• Full Technical Description: 6 Shape; Aluminum/Copper/Acsr Conductor Material; Aluminum Body Material; D3 Die Index; 3/0 to 4/0 (ACSR, 5005), 4/0 AWG, 266.8 kcmil (Compressed) ACSR Run Conductor Size; 6 AWG, 4 AWG, 3 AWG ACSR (Compressed) ACSR Tap Conductor Size; 4/0 AWG to 250 kcmil, 266.8 kcmil (Aluminum, Compressed) Solid Run Conductor Size; 6 AWG, 4 AWG, 3 AWG, 2 AWG (Copper/Aluminum), 6 AWG, 4 AWG, 3 AWG (Aluminum, Compressed) Solid Tap Conductor Size; 3/0 to 4/0 (Copper/Aluminum), 4/0 AWG to 250 kcmil, 266.8 kcmil (Aluminum, Compressed) Stranded Run Conductor Size; 6 AWG, 4 AWG, 3 AWG (Copper/Aluminum), 6 AWG, 4 AWG, 3 AWG (Aluminum, Compressed) Stranded Tap Conductor Size; CRIMPIT[TM] Brand; RoHS Compatible; Length 1-5/8 Inch; YPC-U Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Cable to Cable Compression Overhead Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810135990
• SKU Name: bur ypc28u4

Resources

• Technical Drawing
• Manufacturer Spec Sheet
