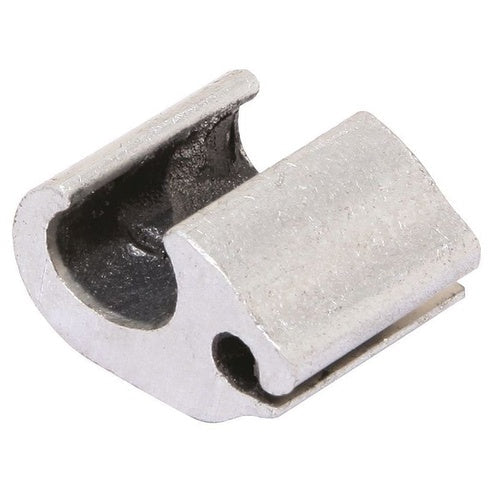

Burndy YPC2A8U 2Str Aluminum/Copper Tap Connector

Overview

Burndy YPC2A8U 2Str Aluminum/Copper Tap Connector

Product Specifications

• UPC: 78181013568
• Solid Tap Conductor Size: 14 AWG (Copper/Aluminum)
• Stranded Tap Conductor Size: 8 AWG Stranded (Copper/Aluminum)
• Die Index: BG or 5/8
• Body Material: Aluminum
• Additional Information: RoHS Compatible; Length 5/8 Inch
• Catalog Number: YPC2A8U
• Brand Name: CRIMPIT[TM]
• Model: YPC-R-U
• Shape: 6
• Conductor Material: Aluminum/Copper/ACSR
• Solid Run Conductor Size: 6 to 2 AWG (Copper/Aluminum), 4 to 2 AWG (Aluminum, Compressed)
• Stranded Run Conductor Size: 6 to 2 AWG (Copper/Aluminum), 4 to 2 AWG (Aluminum, Compressed)
• Acsr Run Conductor Size: 6 to 4 AWG (ACSR), 6 to 2 AWG (Compressed)
• Catalog Description: COMPACT COMPRESSION CONNECTOR DESIGNED TO TAP SMALL LIGHTING WIRES FROM SECONDARIES. FIGURE 6-SHAPE SEPARATES RUN AND TAP, AND MINIMIZES GALVANIC CORROSION.
• Category: Large Terminals & Connectors
• Full Technical Description: 6 Shape; Aluminum/Copper/Acsr Conductor Material; Aluminum Body Material; BG or 5/8 Die Index; 6 to 4 AWG (ACSR), 6 to 2 AWG (Compressed) ACSR Run Conductor Size; 6 to 2 AWG (Copper/Aluminum), 4 to 2 AWG (Aluminum, Compressed) Solid Run Conductor Size; 14 AWG (Copper/Aluminum) Solid Tap Conductor Size; 6 to 2 AWG (Copper/Aluminum), 4 to 2 AWG (Aluminum, Compressed) Stranded Run Conductor Size; 8 AWG Stranded (Copper/Aluminum) Stranded Tap Conductor Size; CRIMPIT[TM] Brand; RoHS Compatible; Length 5/8 Inch; YPC-R-U Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Cable to Cable Compression Overhead Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810135686
• SKU Name: bur ypc2a8u

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
