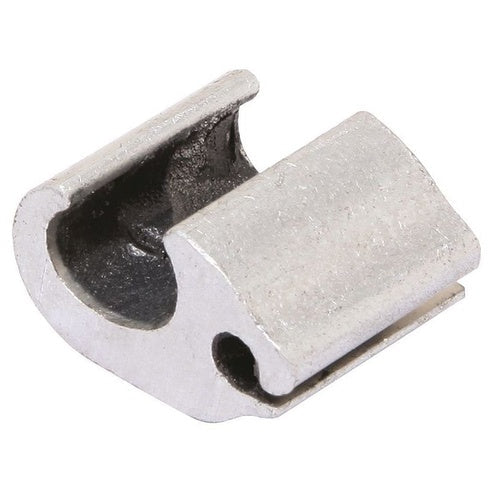

Burndy YPC33R33R 400 Aluminum/Copper Tap Connector

Overview

Burndy YPC33R33R 400 Aluminum/Copper Tap Connector

Product Specifications

• UPC: 78181013820
• Maximum Tap Conductor Size: 397.5 KCMIL (ACSR/5005), 400 KCMIL (COPPER/ALUMINUM)
• Die Index: N
• Catalog Number: YPC33R33R
• Model: YPC-U
• Shape: 6
• Number Of Taps: 1
• Conductor Material: COPPER/ALUMINUM/ACSR/6201/5005
• Minimum Run Conductor Size: 250 KCMIL STRANDED (COPPER/ALUMINUM), 266.8 KCMIL (ACSR/5005)
• Maximum Run Conductor Size: 397.5 KCMIL (ACSR/5005), 400 KCMIL STRANDED (COPPER/ALUMINUM)
• Minimum Tap Conductor Size: 250 KCMIL (COPPER/ALUMINUM), 266.8 KCMIL (ACSR/5005)
• Catalog Description: FIGURE 6 SHAPE CONNECTOR SEPARATES RUN AND TAP WIRES AND MINIMIZES GALVANIC CORROSION OF CONDUCTORS,RUN ACSR,5005:266.8 (18-1) - 397.5 (18-1).
• Category: Large Terminals & Connectors
• Full Technical Description: 250 kcmil Stranded (Copper/Aluminum), 266.8 kcmil (Acsr/5005) min. Run Conductor Size; 397.5 kcmil (Acsr/5005), 400 kcmil Stranded (Copper/Aluminum) Max. Run Conductor Size; 250 kcmil (Copper/Aluminum), 266.8 kcmil (Acsr/5005) min. Tap Conductor Size; 397.5 kcmil (Acsr/5005), 400 kcmil (Copper/Aluminum) Max. Tap Conductor Size; 6 Shape; Copper/Aluminum/Acsr/6201/5005 Conductor Material; N Die Index; 1 Tap(S); YPC-U Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810138205
• SKU Name: bur ypc33r33r

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
