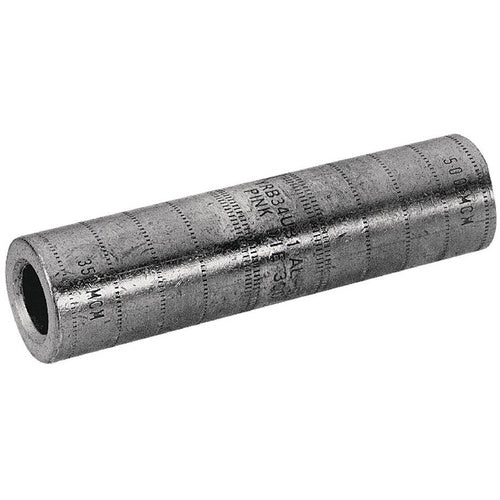

Burndy YRB36U34 600-500Mcm Reducing Splicer

Overview

Burndy YRB36U34 600-500Mcm Reducing Splicer

Product Specifications

• UPC: 78181074011
• Outer Diameter: 1.46 Inch
• Length: 5.57 Inch
• Material: Electro Tin Plated Aluminum
• Color: Yellow
• Approval: UL
• Additional Information: RoHS Compatible; Wire Strip Length 2-5/16 Inch
• Catalog Number: YRB36U34
• Brand Name: HYREDUCER[TM]
• Model: YRB
• Type: Reducing Splice
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Aluminum/Copper
• Side A Conductor Size: 600 KCMIL
• Side B Conductor Size: 500 KCMIL
• Catalog Description: AL SPLICE REDUCER, BARREL A 600 KCMIL, BARREL B 500 KCMIL, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAPS, UL/CSA, 90C, UP TO 35KV, YELLOW COLOR CODE, 936 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Reducing Splice Type; Electro Tin Plated Aluminum Material; Yellow Color; 5.57 Inch; 1.46 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL Approval; 600 V to 35 kV Voltage Rating; 500 kcmil Side B Conductor Size; 600 kcmil Side A Conductor Size; HYREDUCER[TM] Brand; RoHS Compatible; Wire Strip Length 2-5/16 Inch; YRB Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Reducer
• Unspsc: 39121458
• UPC 12 Digit: 781810740118
• SKU Name: bur yrb36u34
