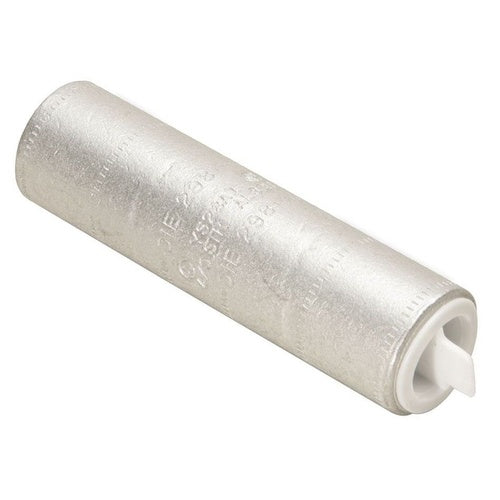

Burndy YS25A1 1/0Awg Aluminum/Copper Butt Splice

Overview

Burndy YS25A1 1/0Awg Aluminum/Copper Butt Splice

Product Specifications

• UPC: 78181075705
• Barrel Type: Standard with Belled End, Chamfered
• Length: 2.37 Inch
• Outer Diameter: 0.6 Inch
• Body Material: Electro-Tin Plated Aluminum
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-1/16 Inch; Die Index 296; Temperature Rating 90 Deg C
• Catalog Number: YS25A1
• Brand Name: HYLINK[TM]
• Model: Type YS-A
• Type: Butt with Centre Wire Stop
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 1/0 AWG Aluminum/Stranded Copper
• Conductor Material: Aluminum/Copper
• Color Code: Tan
• Catalog Description: 1/0 AWG AL SPLICE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, TAN COLOR CODE, 296 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Centre Wire Stop Type; 2.37 Inch; 0.6 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro-Tin Plated Aluminum Body Material; 1/0 AWG Aluminum/Stranded Copper Conductor Size; Tan Color Code; Standard With Belled End, Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 1-1/16 Inch; Die Index 296; Temperature Rating 90 Deg C; TYPE YS-A Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810757055
• SKU Name: bur ys25a1

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
