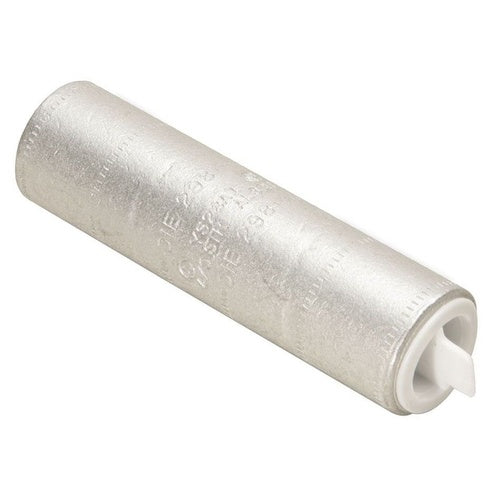

Burndy YS29A1 250Mcm Butt Splice

Overview

Burndy YS29A1 250Mcm Butt Splice

Product Specifications

• UPC: 78181075735
• Barrel Type: Long with Belled End, Chamfered
• Length: 3.18 Inch
• Outer Diameter: 0.92 Inch
• Body Material: Electro Tin Plated Aluminum
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-5/8 Inch; Die Index 324; Temperature Rating 90 Deg C
• Catalog Number: YS29A1
• Brand Name: HYLINK[TM]
• Model: YS-A
• Type: Butt with Center Wire Stop
• Voltage Rating: 35 Kilovolt
• Conductor Size: 250 KCMIL (Aluminum), 250 KCMIL Stranded (Copper)
• Conductor Material: Copper/Aluminum
• Color Code: Red
• Catalog Description: 250 KCMIL AL SPLICE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 324 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Center Wire Stop Type; 3.18 Inch; 0.92 Inch Outer Diameter; Copper/Aluminum Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; Electro Tin Plated Aluminum Body Material; 250 kcmil (Aluminum), 250 kcmil Stranded (Copper) Conductor Size; Red Color Code; Long With Belled End, Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 1-5/8 Inch; Die Index 324; Temperature Rating 90 Deg C; YS-A Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810757352
• SKU Name: bur ys29a1
