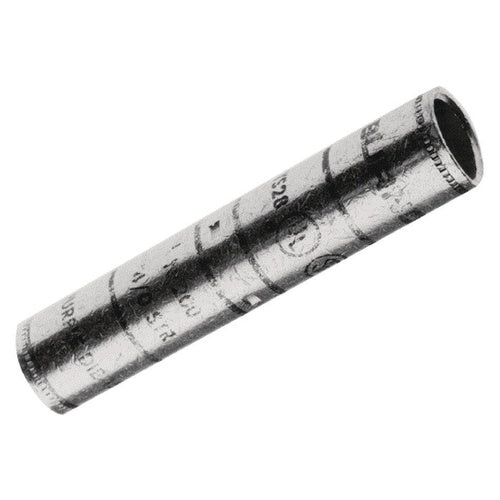

Burndy YS31 350Mcm Copper Butt Splice

Overview

Burndy YS31 350Mcm Copper Butt Splice

Product Specifications

• UPC: 78181050825
• Barrel Type: Long with Bevelled Entry, Chamfered
• Length: 4.35 Inch
• Outer Diameter: 0.88 Inch
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 2-1/16 Inch; Die Index 18/324; Temperature Rating 90 Deg C
• Catalog Number: YS31
• Brand Name: HYLINK[TM]
• Model: YS
• Type: Butt with Center Wire Stop
• Voltage Rating: 35 Kilovolt
• Conductor Size: 350 KCMIL
• Conductor Material: Copper
• Color Code: Red
• Catalog Description: 350 KCMIL CU, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 18 OR 324 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Center Wire Stop Type; 4.35 Inch; 0.88 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 350 kcmil Conductor Size; Red Color Code; Long With Bevelled Entry, Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 2-1/16 Inch; Die Index 18/324; Temperature Rating 90 Deg C; YS Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810508251
• SKU Name: bur ys31
