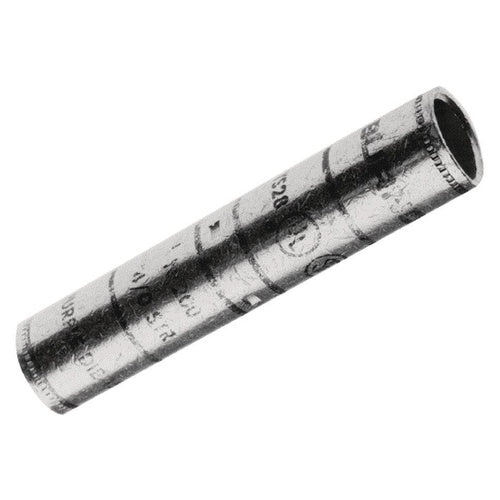

Burndy YS32 400Mcm Copper Butt Splice

Overview

Burndy YS32 400Mcm Copper Butt Splice

Product Specifications

• UPC: 78181050840
• Barrel Type: Long with Bevelled Entry, Chamfered
• Length: 4.62 Inch
• Outer Diameter: 0.95 Inch
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 2-3/16 Inch; Die Index 19/470; Temperature Rating 90 Deg C
• Catalog Number: YS32
• Brand Name: HYLINK[TM]
• Model: YS
• Type: Butt with Center Wire Stop
• Voltage Rating: 35 Kilovolt
• Conductor Size: 400 KCMIL
• Conductor Material: Copper
• Color Code: Blue
• Catalog Description: 400 KCMIL CU, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 19 OR 470 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Center Wire Stop Type; 4.62 Inch; 0.95 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 400 kcmil Conductor Size; Blue Color Code; Long With Bevelled Entry, Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 2-3/16 Inch; Die Index 19/470; Temperature Rating 90 Deg C; YS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810508404
• SKU Name: bur ys32

Resources

• Technical Line Drawing
• Manufacturer Spec Sheet
