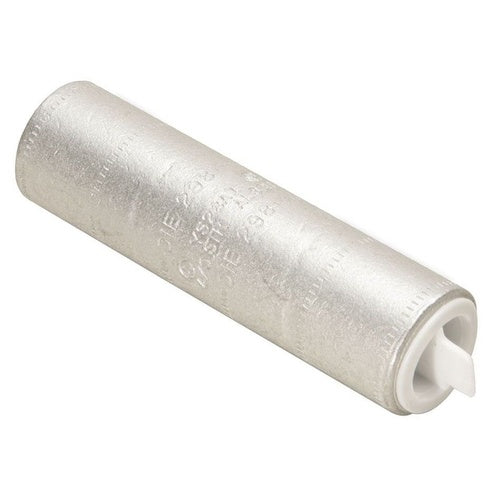

Burndy YS32A1 400Mcm Butt Splice

Overview

Burndy YS32A1 400Mcm Butt Splice

Product Specifications

• UPC: 78181075752
• Barrel Type: Standard with Chamfered End
• Length: 4.86 Inch
• Body Material: Electro Tin Plated High Conductivity Wrought Aluminum
• Approval: UL 468A/468B, CSA
• Additional Information: ROHS COMPATIBLE; WIRE STRIP LENGTH 2 1/2 INCH; DIE INDEX 472; TEMPERATURE RATING 90 DEG C; USED ON ALUMINUM TO ALUMINUM, ALUMINUM TO COPPER, COPPER TO COPPER CONDUCTOR COMBINATION
• Catalog Number: YS32A1
• Brand Name: HYLINK[TM]
• Model: YS-A
• Type: Butt
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 400 KCMIL
• Conductor Material: Aluminum
• Color Code: Green
• Catalog Description: 400 KCMIL AL SPLICE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, GREEN COLOR CODE, 472 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 4.86 Inch; Aluminum Conductor Material; UL 468A/468B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated High Conductivity Wrought Aluminum Body Material; 400 kcmil Conductor Size; Green Color Code; Standard With Chamfered End Barrel Type; HYLINK[TM] Brand; RoHS Compatible; Wire Strip Length 2 1/2 Inch; Die Index 472; Temperature Rating 90 Deg C; Used on Aluminum to Aluminum, Aluminum to Copper, Copper to Copper Conductor Combination; YS-A Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810757529
• SKU Name: bur ys32a1
