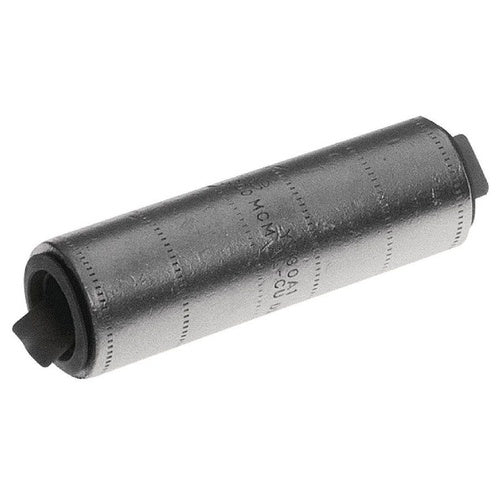

Burndy YS34A1 500Mcm Butt Splice

Overview

Burndy YS34A1 500Mcm Butt Splice

Product Specifications

• UPC: 78181075755
• Barrel Type: Long with Belled End, Chamfered
• Length: 5 Inch
• Outer Diameter: 1.32 Inch
• Body Material: Electro-Tin Plated Aluminum
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 2 5/8 Inch; Die Index 300; Temperature Rating 90 Deg C
• Catalog Number: YS34A1
• Brand Name: HYLINK[TM]
• Model: Type YS-A
• Type: Butt with Centre Wire Stop
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 500 KCMIL Aluminum/Stranded Copper
• Conductor Material: Aluminum/Copper
• Color Code: Pink
• Catalog Description: 500 KCMIL AL SPLICE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, 300 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Centre Wire Stop Type; 5 Inch; 1.32 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro-Tin Plated Aluminum Body Material; 500 kcmil Aluminum/Stranded Copper Conductor Size; Pink Color Code; Long With Belled End, Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 2 5/8 Inch; Die Index 300; Temperature Rating 90 Deg C; TYPE YS-A Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810757550
• SKU Name: bur ys34a1
