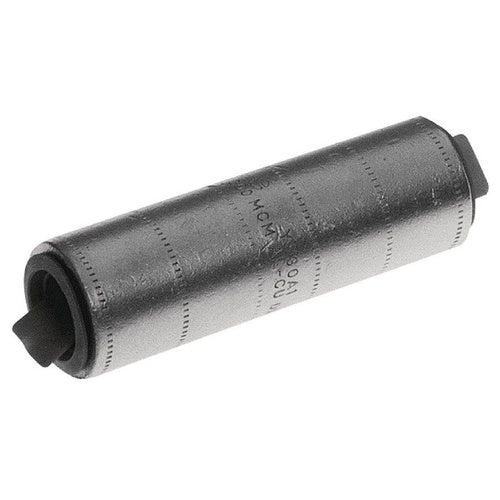

Burndy YS44A1 1000Mcm Butt Splice

Overview

Burndy YS44A1 1000Mcm Butt Splice

Product Specifications

• UPC: 78181076625
• Barrel Type: LONG WITH BELLED END
• Length: 5.94 INCH
• Length In Inch: 5.94
• Outer Diameter: 1.84 INCH
• Body Material: TIN PLATED ALUMINUM
• Approval: UL 468-A, UL 468-B, CSA
• Additional Information: ROHS COMPATIBLE; WIRE STRIP LENGTH 3 INCH; DIE INDEX 302; TEMPERATURE RATING 75 DEG C; USED ON ALUMINUM TO ALUMINUM, ALUMINUM TO COPPER, COPPER TO COPPER CONDUCTOR COMBINATION
• Catalog Number: YS44A1
• Brand Name: HYLINK[T], BURNDY[R]
• Model: YS
• Type: BUTT
• Voltage Rating: 600 V TO 35 KV
• Conductor Size: 1000 KCMIL (ALUMINUM), 1000 KCMIL STRANDED (COPPER)
• Conductor Material: ALUMINUM/COPPER
• Color Code: BROWN
• Catalog Description: 1000 KCMIL AL SPLICE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 302 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 5.94 Inch; 5.94 Length in Inch; 1.84 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL 468-A, UL 468-B, CSA Approval; 600 V to 35 kV Voltage Rating; Tin Plated Aluminum Body Material; 1000 kcmil (Aluminum), 1000 kcmil Stranded (Copper) Conductor Size; Brown Color Code; Long With Belled End Barrel Type; HYLINK[T], BURNDY[R] Brand; RoHS Compatible; Wire Strip Length 3 Inch; Die Index 302; Temperature Rating 75 Deg C; Used on Aluminum to Aluminum, Aluminum to Copper, Copper to Copper Conductor Combination; YS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810766255
• SKU Name: bur ys44a1

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
