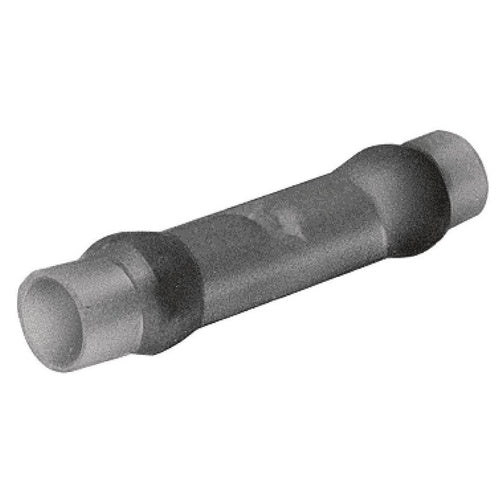

Burndy YSE18HBOX 22-18 Butt Splice

Overview

Burndy YSE18HBOX 22-18 Butt Splice

Product Specifications

• Catalog Description: NYLON SPLICE FOR 22 - 18 AWG.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; Seamless Electrolytic Tin Plated Copper Material; Red Color; 1.22 Inch; 1.22 Length in Inch; 0.12 Inch Max. Insulation Diameter; UL, CSA Approval; 600 V Voltage Rating; 105 Deg C Temperature Rating; 22 to 18 AWG (Aircraft, Code) Conductor Size; Nylon Insulated Insulation Type; INSULINK[T], BURNDY[R] Brand; RoHS Compatible; Wire Strip Length 9/32 Inch; Application Aircraft, Commercial Flexible Cable; YSE Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 781810566602
• SKU Name: bur yse18hbox

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
