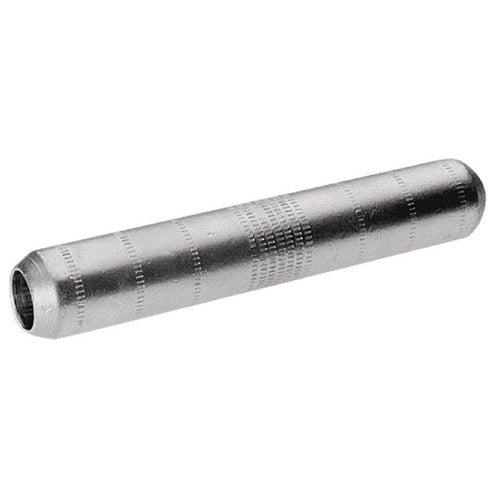

Burndy YSP25T 1/0Awg Copper Splice

Overview

Burndy YSP25T 1/0Awg Copper Splice

Product Specifications

• UPC: 78181050102
• Length: 2.35 Inch
• Outer Diameter: 0.51 Inch
• Body Material: Electro-Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Wire Strip Length 1-3/32 Inch; Die Index 12; Temperature Rating 90 Deg C; Application High Voltage
• Catalog Number: YSP25T
• Brand Name: HYLINK[TM]
• Model: YSP
• Type: Centre Oil Stop
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 1/0 AWG Stranded
• Conductor Material: Copper
• Barrel Type: Standard
• Catalog Description: 1/0 AWG CU, TAPERED END, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, 12 OR 348 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Centre Oil Stop Type; 2.35 Inch; 0.51 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro-Tin Plated Copper Body Material; 1/0 AWG Stranded Conductor Size; Standard Barrel Type; HYYLINK[TM] Brand; RoHS Compatible; Wire Strip Length 1-3/32 Inch; Die Index 12; Temperature Rating 90 Deg C; Application High Voltage; YSP Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810501023
• SKU Name: bur ysp25t

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
