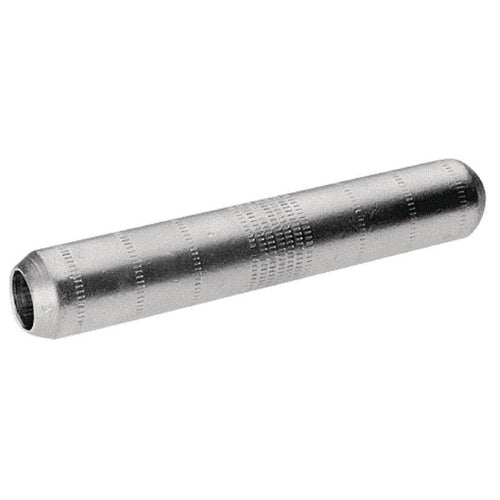

Burndy YSP29T 250Mcm Copper Splice

Overview

Burndy YSP29T 250Mcm Copper Splice

Product Specifications

• UPC: 78181000131
• Length: 2.85 INCH
• Length In Inch: 2.85
• Outer Diameter: 0.75 INCH
• Body Material: ELECTRO TIN PLATED HIGH CONDUCTIVITY COPPER
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; WIRE STRIP LENGTH 1 3/32 INCH; DIE INDEX 16; TEMPERATURE RATING 90 DEG C
• Catalog Number: YSP29T
• Brand Name: HYLINK[T], BURNDY[R]
• Model: YS
• Type: CENTRE OIL STOP
• Voltage Rating: 600 V TO 35 KV
• Conductor Size: 250 KCMIL
• Conductor Material: COPPER
• Barrel Type: STANDARD
• Catalog Description: 250 KCMIL CU, TAPERED END, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, YELLOW COLOR CODE, 16 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Centre Oil Stop Type; 2.85 Inch; 2.85 Length in Inch; 0.75 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro Tin Plated High Conductivity Copper Body Material; 250 kcmil Conductor Size; Standard Barrel Type; HYLINK[T], BURNDY[R] Brand; RoHS Compatible; Wire Strip Length 1 3/32 Inch; Die Index 16; Temperature Rating 90 Deg C; YS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810001318
• SKU Name: bur ysp29t

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
