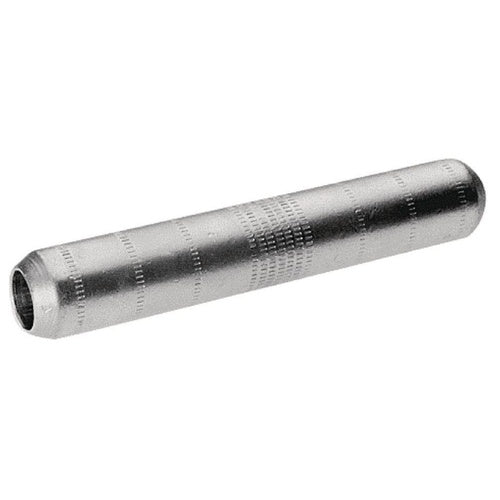

Burndy YSP31T 350Mcm Copper Splice

Overview

Burndy YSP31T 350Mcm Copper Splice

Product Specifications

• UPC: 78181000132
• Body Material: Electro-Tin Plated Copper
• Approval: UL, CSA
• Additional Information: Operating Temperature Rating 90 Deg C
• Catalog Number: YSP31T
• Brand Name: HYLINK[TM]
• Model: YS
• Type: Center Oil Wire Stop
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 350 KCMIL
• Barrel Type: Standard with Tapered End
• Length: 2.79 Inch
• Catalog Description: 350 KCMIL CU, TAPERED END, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, RED COLOR CODE, 18 OR 324 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Center Oil Wire Stop Type; 2.79 Inch; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro-Tin Plated Copper Body Material; 350 kcmil Conductor Size; Standard With Tapered End Barrel Type; HYYLINK[TM] Brand; Operating Temperature Rating 90 Deg C; YS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810001325
• SKU Name: bur ysp31t

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
