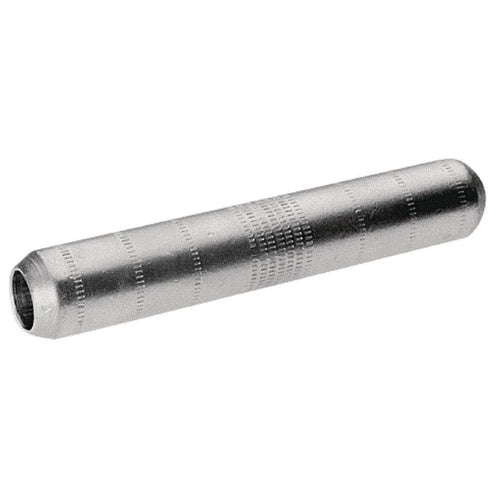

Burndy YSP34T 500Mcm Copper Splice

Overview

Burndy YSP34T 500Mcm Copper Splice

Product Specifications

• UPC: 78181000133
• Insulation Type: NON INSULATED
• Approval: UL, CSA
• Length In Inch Uom: in
• Catalog Number: YSP34T
• Brand Name: HYLINK[T]
• Model: YSV-L
• Type: BUTT
• Voltage Rating: 600 V
• Length: 1.81 INCH
• Length In Inch: 1.81
• Conductor Size: 3/0 AWG SOLID/STANDARD (AIRCRAFT)
• Catalog Description: 500 KCMIL CU, TAPERED END, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 20 OR 299 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 1.81 Inch; 1.81 Length in Inch; UL, CSA Approval; 600 V Voltage Rating; 3/0 AWG Solid/Standard (Aircraft) Conductor Size; Non Insulated Insulation Type; HYLINK[T] Brand; Length in Inch - Uom in; YSV-L Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 781810001332
• SKU Name: bur ysp34t

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
