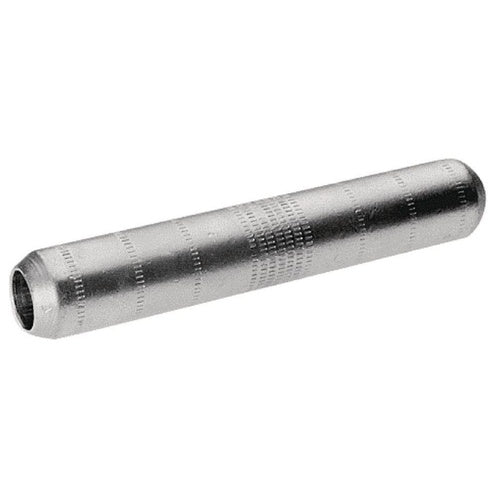

Burndy YSP39T 750 Copper Hv Splice

Overview

Burndy YSP39T 750 Copper Hv Splice

Product Specifications

• UPC: 78181000134
• Length: 3.72 INCH
• Length In Inch: 3.72
• Approval: UL, CSA
• Length In Inch Uom: in
• Additional Information: OPERATING TEMPERATURE 90 DEG C
• Catalog Number: YSP39T
• Brand Name: HYLINK[T]
• Model: YS-FXB
• Type: CENTER WIRE STOP
• Voltage Rating: 600 V TO 35 KV
• Conductor Size: 4/0 AWG STRANDED (550/24), 4/0 AWG
• Color Code: BLACK
• Barrel Type: LONG WITH BELLED END
• Catalog Description: 750 KCMIL CU, TAPERED END, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLACK COLOR CODE, 24 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Center Wire Stop Type; 3.72 Inch; 3.72 Length in Inch; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 4/0 AWG Stranded (550/24), 4/0 AWG Conductor Size; Black Color Code; Long With Belled End Barrel Type; HYLINK[T] Brand; Operating Temperature 90 Deg C; Length in Inch - Uom in; YS-FXB Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810001349
• SKU Name: bur ysp39t

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
