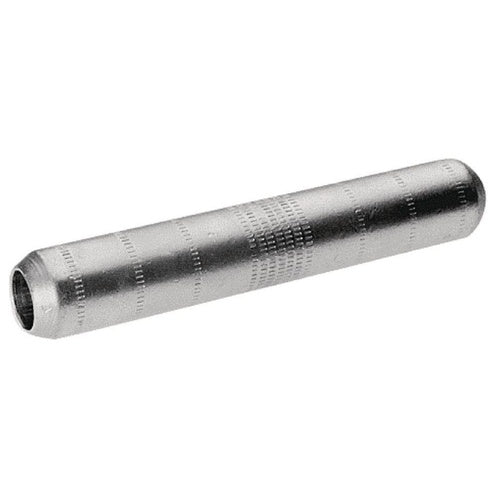

Burndy YSP4CT 4Awg Copper Splice

Overview

Burndy YSP4CT 4Awg Copper Splice

Product Specifications

• UPC: 78181000128
• Length: 2.16 INCH
• Length In Inch: 2.16
• Outer Diameter: 0.34 INCH
• Body Material: ELECTRO TIN PLATED HIGH CONDUCTIVITY COPPER
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; WIRE STRIP LENGTH 15/16 INCH; DIE INDEX 8; TEMPERATURE RATING 90 DEG C; APPLICATION HIGH VOLTAGE
• Catalog Number: YSP4CT
• Brand Name: HYLINK[T], BURNDY[R]
• Model: YS
• Type: CENTRE OIL STOP
• Voltage Rating: 600 V TO 35 KV
• Conductor Size: 4 AWG STRANDED
• Conductor Material: COPPER
• Barrel Type: STANDARD
• Catalog Description: 4 AWG CU, TAPERED END, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, GRAY COLOR CODE, 8 OR 346 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Centre Oil Stop Type; 2.16 Inch; 2.16 Length in Inch; 0.34 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro Tin Plated High Conductivity Copper Body Material; 4 AWG Stranded Conductor Size; Standard Barrel Type; HYLINK[T], BURNDY[R] Brand; RoHS Compatible; Wire Strip Length 15/16 Inch; Die Index 8; Temperature Rating 90 Deg C; Application High Voltage; YS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810001288
• SKU Name: bur ysp4ct
