Product Description

Overview

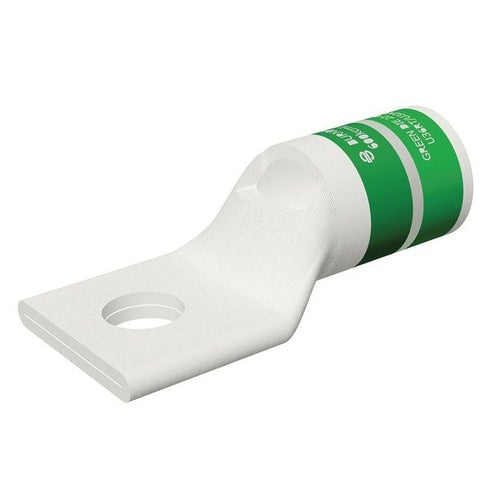

HYLUGTM YA1CL6 YA-L 1-Hole Compression Lug With Inspection Window, 1 AWG Stranded Copper Conductor, Die Code: 11/375, 1/2 in Stud, Electro-Tin Plated Copper

Product Specifications

  • Catalog Number: YA1CL6
  • UPC / GTIN: 781810500583
  • Manufacturer Brand: BURNDY®
  • UNSPSC: UNSPSC000
  • Features: Standard barrel
  • Barrel Size: 0.46 in OD x 0.88 in L
  • Barrel Type: Chamfered/Skived/Standard
  • Color: Green
  • Conductor Size: 1 AWG
  • Conductor Type: Stranded Copper
  • Die Code: 11/375
  • Material: Electro-Tin Plated Copper
  • Overall Length: 2.37 in
  • Series: YA-L
  • Specifications: 15/16 in L Wire Strip
  • Stud Size: 1/2 in
  • Temperature Rating: 90 deg C
  • Tongue Size: 0.73 in W x 0.9 in THK
  • Tongue Type: Straight
  • Type: 1-Hole
  • Voltage Rating: 600 V AC to 35 kV | 600 VAC to 35 kV
