Burndy yaz282ntc38

Overview

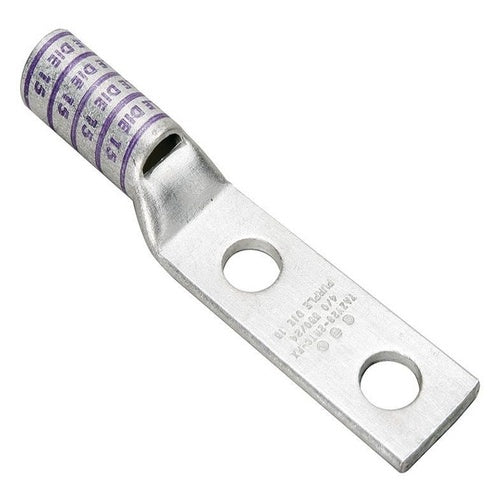

YAZ282NTC38, Compression Terminal, 4/0 AWG Cu, 2-Hole, 3/8" Stud, 1-3/4" Spacing, Long Barrel

Product Specifications

• Part Number: YAZ282NTC38
• UPC / GTIN: 781810227879
• Manufacturer Brand: Burndy
• Features: Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands; Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements; Connectors are clearly marked with stamping and barrel color coding
• Application: Wire Termination
• Color Code: Purple
• Connector Type: LONG BARREL
• Die Index: 15
• Feature - Barrel Style: Skived
• Feature - Barrel Type: Long
• Finish Type: Tin-Plated
• Material: Copper
• Number of Pad Holes: 2
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Tongue Type: Standard
• Plated: Yes
• Plating Type: Tin
• Product Family: COMPRESSION
• Product Type: Terminal
• Sub Brand: HYLUG
• Trade Name: HYLUGTM
• Type: Long Barrel, Skive, Tin Plated
• UPC: 781810227879
• UPC 14 Digit GTIN: 00781810227879
• Dimension - B Length inch: 1.62 in
• Dimension - Bolt Hole Size inch: 0.4 in
• Dimension - Bolt Size fraction: 3/8
• Dimension - Bolt Size inch: 0.38
• Dimension - Hole Size fraction: 3/8
• Dimension - Hole Size inch: 0.41
• Dimension - Hole Size mm: 10.4 mm
• Dimension - L Length Overall mm: 120 mm
• Dimension - Length Overall inch: 4.74 in
• Dimension - N inch: 0.41 in
• Dimension - Outside Diameter inch: 0.69 in
• Dimension - Pad Width inch: 1.02 in
• Dimension - Strip Length inch: 1-11/16
• Dimension - Stud Size fraction: 3/8
• Dimension - Stud Size inch: 3/8
• Dimension - Z (inch): 2.18 in
• Package Height: 0 in
• Package Length: 0 in
• Package Weight: 0 lb
• Package Width: 0 in
• Physical Attribute - Tongue Angle: Straight
• Voltage - Maximum: 35000
• Voltage Rating: 35 kV
• Conductor - Copper Str Navy Size: 200 (61) Navy
• Conductor - Copper Str Navy Size Range: 200 (61) Navy
• Conductor - Copper Str Size: 4/0 AWG
• Conductor - Material: COPPER
• Conductor Size: 4/0 AWG
• Conductor Type: CODE
• Buy America(n) Qualified: TAA Compliant (All status valid till December 2026)
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL 486A-486B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Carton Quantity: 20
• Minimum Pack Quantity: 1
