Burndy yaz302n

Overview

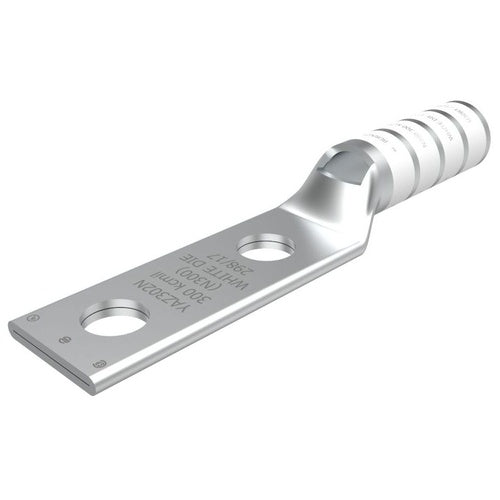

YAZ302N, Cu Compression, 2-Hole, 1/2" Stud, 1-3/4" Spacing, Long Barrel, 300 kcmil

Product Specifications

• Part Number: YAZ302N
• UPC / GTIN: 781810227886
• Manufacturer Brand: Burndy
• Features: Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands; Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements; Connectors are clearly marked with stamping and barrel color coding
• Application: Wire Termination
• Color Code: White
• Connector Type: LONG BARREL
• Die Index: 17
• Feature - Barrel Style: Skived
• Feature - Barrel Type: Long
• Finish Type: Tin-Plated
• Material: Copper
• Number of Pad Holes: 2
• Physical Attribute - Number of Holes: 2
• Plated: Yes
• Plating Type: Tin
• Product Family: COMPRESSION
• Product Type: Terminal
• Sub Brand: HYLUG
• Temperature Rating: 194
• Trade Name: HYLUGTM
• Type: Long Barrel, Skive, Tin Plated
• UPC: 781810227886
• UPC 14 Digit GTIN: 00781810227886
• Dimension - B Length fraction: 2 in
• Dimension - B Length inch: 2.00 in
• Dimension - Bolt Hole Size inch: 0.52 in
• Dimension - Bolt Size fraction: 1/2
• Dimension - Bolt Size inch: 0.5
• Dimension - D inch: 3.01 in
• Dimension - Hole Size fraction: 1/2
• Dimension - Hole Size inch: 0.56
• Dimension - Hole Size mm: 14 mm
• Dimension - L Length Overall mm: 142 mm
• Dimension - Length Overall inch: 5.60 in
• Dimension - N inch: 0.62 in
• Dimension - Outside Diameter inch: 0.81 in
• Dimension - Pad Width inch: 1.20 in
• Dimension - Strip Length inch: 2-1/16
• Dimension - Stud Size fraction: 1/2
• Dimension - Stud Size inch: 1/2
• Dimension - Thread Size: 1/2
• Dimension - Z (inch): 0.64 in
• Package Height: 0 in
• Package Length: 0 in
• Package Weight: 0 lb
• Package Width: 0 in
• Physical Attribute - Tongue Angle: Straight
• Voltage - Maximum: 35000
• Voltage Rating: 35 kV
• Conductor - Copper Str Navy Size: 300 (91) Navy
• Conductor - Copper Str Navy Size Range: 300 (91) Navy
• Conductor - Copper Str Size: 300 KCMIL
• Conductor - Copper Str Size Range: 300 kcmil
• Conductor - Material: COPPER
• Conductor Size: 300 KCMIL
• Conductor Type: CODE
• Buy America(n) Qualified: TAA Compliant (All status valid till December 2026)
• Certification - CSA Approved: Yes
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL 486A-486B
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Carton Quantity: 10
• Minimum Pack Quantity: 1
• Pallet Quantity: 5760
