Burndy ys34t

Overview

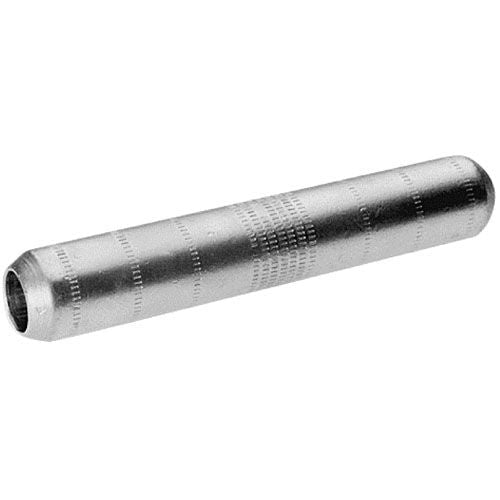

YS34T, Compression Splice, 500 kcmil Cu, Tapered End

Product Specifications

• Part Number: YS34T
• UPC / GTIN: 781810001257
• Manufacturer Brand: Burndy
• Features: Copper seamless barrel designed with tapered ends per EEI Standard TD160, for use on voltages 5kV through 35kV, this aids in preventing corona emission and simplifies taping for lower installation cost; Barrel also features internal chamfer at wire entry to ensure smooth insertion of wire, preventing possible damage of the wire strands during insertion; Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
• Application: T-Connector
• Color Code: Brown
• Connector Type: T-CONNECTOR
• Die Index: 20
• Finish Type: Tin-Plated
• Material: Copper
• Product Family: COMPRESSION
• Product Type: Splice
• Sub Brand: HYLINK
• Trade Name: HYLINKTM
• Type: YS-T, High Voltage, Standard Barrel
• UPC: 781810001257
• Package Height: 0 in
• Package Length: 0 in
• Package Weight: 0 lb
• Package Width: 0 in
• Voltage Rating: 35 kV
• Conductor - Copper Str Size Range: 500 kcmil
• Conductor - Material: COPPER
• Conductor Size: 500 KCMIL
• Conductor Type: CODE
• Wire Size: 500 KCMIL
• Buy America(n) Qualified: Contact Manufacturer
• Certification - CSA Approved: Yes
• Certification - ETL: No
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Carton Quantity: 25
• Minimum Pack Quantity: 1
• Pallet Quantity: 4625
