Bussmann fnqr15

Overview

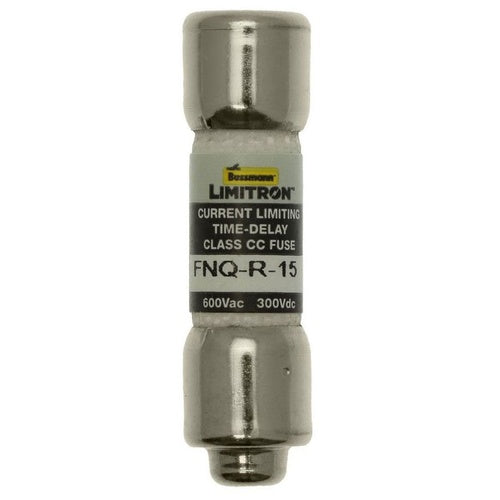

FNQR15 - 15A 600V TD Class CC Fuse

Product Specifications

• Catalog Number: FNQR15
• UPC / GTIN: 051712497114
• Manufacturer: Eaton Bussmann Series
• UNSPSC: 39121606 - Cartridge fuses
• Full Technical Description: Fuse, Time Delay Fuse Speed, Class CC Fuse, 12 s @ 200% Response Time, Ferrule End x Ferrule End Connection, 15 A, 600 V ac;300 V dc, Melamine Material, 0.41 in Diameter, 1.5 in Overall Length, 0.02 lb
• Amperage Rating: 15
• Connection: Ferrule End X Ferrule End
• Current Rating: 15 A
• Interrupt Rating: 200 kAIC (RMS Symmetrical):20 kAIC (DC)
• Material: Melamine
• Voltage Rating: 600 V ac;300 V dc
• Diameter: 0.41 in;10.3 mm
• Overall Length: 1.5 in;38.1 mm
• Size: 13/32 In Diameter X 1-1/2 In Length
• Description: 15A 600V TD CLASS CC FUSE
• Extra Long Description: BUSS FNQ-R-15 CLASS CC TIME DELAY
• Features: Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or
• Long Description: Fuse, Time Delay Fuse Speed, Class CC Fuse, 12 s @ 200% Response Time, Ferrule End x Ferrule End Connection, 15 A, 600 V ac;300 V dc, Melamine Material, 0.41 in Diameter, 1.5 in Overall Length, 0.02 lb
• Product Type: Fuse
• Short Description: 15 A, 600 VAC/300 V dc, Time Delay Class CC Fuse
• Special Features: Rejection Style
• Connection Type: Ferrule End x Ferrule End
• Dimensions: 1.5000 IN X 0.4100 IN X 0.4100 IN
• Fuse Class: Class CC
• Fuse Speed: Time Delay
• Made In USA: yes
• Package Quantity: 10 CT
• Response Time: 12 s @ 200%
• Standards Met: UL Listed;Std. 248-14;Guide JDYX;File E19180;CSA Certified:C22.2 No. 248.14;Class 1422-01;File 53787;HRC-MISC;CE Certified;RoHS Compliant
• Manufacturers Part Number: FNQ-R-15
• GTIN: 00051712497114
• UPC: 051712497114
• Type: FUSE
• Weight: 0.02 lb
• Weight per each: 0.02
• Carton: 10
• Application: Branch Circuits;Line Protection;Small Control Transformers;Industrial Control
• Standard: RoHS Compliant,CE Marked
