Bussmann fnqr20

Overview

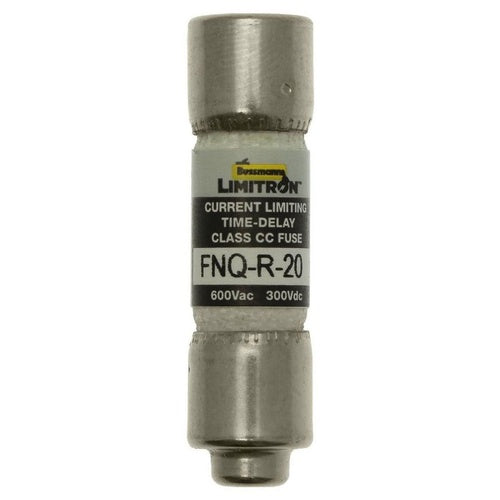

FNQR20 - 20A 600V TD Class CC Fuse

Product Specifications

• Catalog Number: FNQR20
• UPC / GTIN: 051712497121
• Manufacturer: Eaton Bussmann Series
• UNSPSC: 39121606 - Cartridge fuses
• Full Technical Description: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 20 A, rejection style fuse, interrupting rating of 200kA at 600Vac and 20 kA at 300 Vdc
• Amperage Rating: 20
• Connection: Ferrule End X Ferrule End
• Interrupt Rating: 200 kAIC at 600 Vac20 kAIC at 300 Vdc
• Material: Melamine Tube
• Voltage Rating: 600 Vac, 300 Vdc
• Size: 13/32 In Diameter X 1-1/2 In Length
• Description: 20A 600V TD CLASS CC FUSE
• Extra Long Description: BUSS FNQ-R-20 CLASS CC TIME DELAY
• Features: Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or
• Long Description: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 20 A, rejection style fuse, interrupting rating of 200kA at 600Vac and 20 kA at 300 Vdc
• Product Type: Class CC Time Delay
• Special Features: Rejection Style
• Dimensions: 1.5000 IN X 0.4100 IN X 0.4100 IN
• Fuse Class: Class CC
• Response Time: 12 S at 200%
• Manufacturers Part Number: FNQ-R-20
• GTIN: 00051712497121
• UPC: 051712497121
• Type: FUSE
• Weight per each: 0.02
• Carton: 10
• Application: Ind Facilities & Factories - Facility: Safety and Security Systems
• Standard: CE Marked,RoHS Compliant
