Bussmann frnr10

Overview

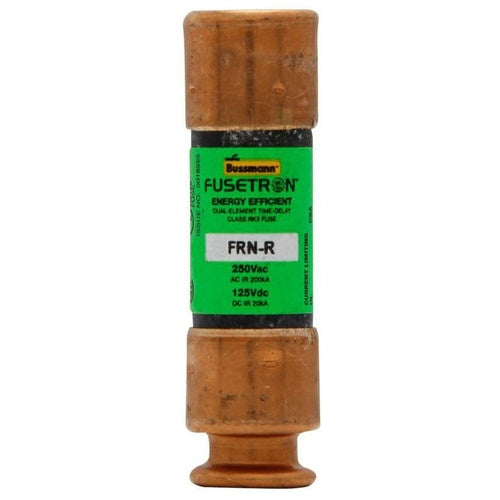

FRNR10 - 10A 250V Dual Elem RK5 TD Fuse Fusetron

Product Specifications

• Catalog Number: FRNR10
• UPC / GTIN: 051712101738
• Manufacturer: Eaton Bussmann Series
• UNSPSC: 39121606 - Cartridge fuses
• Full Technical Description: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 10 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
• Amperage Rating: 10
• Connection: Ferrule End X Ferrule End
• Interrupt Rating: 200 kAIC at 250 Vac20 kAIC at 125 Vdc
• Voltage Rating: 250 VAC, 125 VDC
• Size: 0.56 In Diameter X 2.00 In Length
• Description: 10A 250V DUAL ELEM RK5 TD FUSE FUSETRON
• Extra Long Description: BUSS FRN-R-10 FUSETRON DUAL-ELEMENT
• Features: Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500 of rated current (8 seconds for 1/10-30A sizes).
• Long Description: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 10 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
• Product Type: Fusetron Dual-Element Class RK5
• Dimensions: 5.8750 IN X 1.0000 IN X 1.0000 IN
• Element: Dual
• Fuse Class: Class RK5
• Response Time: 10 S at 500%
• Brand: Eaton
• Manufacturers Part Number: FRN-R-10
• GTIN: 00051712101738
• UPC: 051712101738
• Type: FUSE
• Weight per each: 0.05
• Carton: 10
• Application: Ind Facilities & Factories - Facility: Safety and Security Systems
• Standard: CE Marked
