Bussmann frnr100

Overview

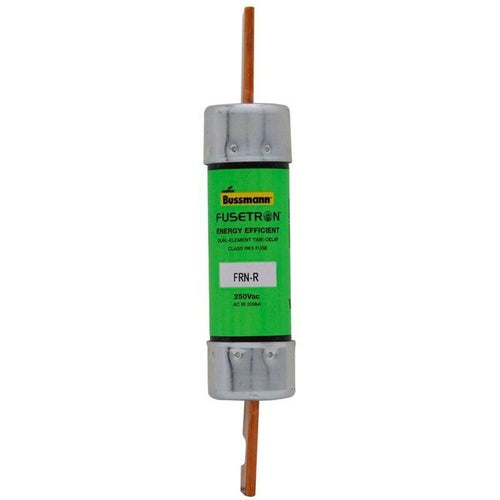

FRNR100 - 100A 250V Dual Elem RK5 TD Fuse Fusetron

Product Specifications

• Catalog Number: FRNR100
• UPC / GTIN: 051712101851
• Manufacturer: Eaton Bussmann Series
• UNSPSC: 39121606 - Cartridge fuses
• Full Technical Description: Time Delay Fusetron Fuse, RK5 Class Fuse, Dual Element Fuse, 10 s @ 500% Response Time, Blade End x Blade End Connection, 100 A, 250 V ac;125 V dc, Blade Terminal, 1.06 in Diameter, 5.88 in Overall Length, 0.32 lb
• Amperage Rating: 100
• Connection: Blade End X Blade End
• Current Rating: 100 A
• Interrupt Rating: 200 kAIC (RMS Symmetrical):20 kAIC (DC)
• Terminal Type: Blade
• Voltage Rating: 250 V ac;125 V dc
• Diameter: 1.06 in
• Overall Length: 5.88 in
• Size: 1.06 In Diameter X 5.88 In Length
• Description: 100A 250V DUAL ELEM RK5 TD FUSE FUSETRON
• Extra Long Description: BUSS FRN-R-100 FUSETRON DUAL-ELEMEN
• Features: Eaton Bussmann(R) series advanced protection, energy efficient FRN-R Class RK5 dual element, current-limiting, time-delay fuses. Time-delay – 10 seconds (minimum) at 500% of rated current.
• Long Description: Time Delay Fusetron Fuse, RK5 Class Fuse, Dual Element Fuse, 10 s @ 500% Response Time, Blade End x Blade End Connection, 100 A, 250 V ac;125 V dc, Blade Terminal, 1.06 in Diameter, 5.88 in Overall Length, 0.32 lb
• Product Type: Time Delay Fusetron Fuse
• Short Description: Fusetron Fuse, 100 A, 250 VAC/125 V dc, Time Delay, RK5 Class
• Connection Type: Blade End x Blade End
• Dimensions: 2.1000 IN X 0.5400 IN X 0.5400 IN
• Element: Dual
• Fuse Class: RK5 Class
• Fuse Type: Dual Element
• Made In USA: yes
• Package Quantity: 5 CT
• Response Time: 10 s @ 500%
• Standards Met: UL Listed;STD. 248-12;Class RK-5, Guide JDDZ, File E4273;CSA Certified;C22.2 No. 248.12, Class 1422-02, File 53787;CE Certified
• Brand: Eaton
• Manufacturers Part Number: FRN-R-100
• GTIN: 00051712101851
• UPC: 051712101851
• Type: FUSE
• Weight: 0.32 lb
• Weight per each: 0.32
• Carton: 5
• Application: Combination Starters;Motor Control Centers;Machinery Disconnects;Power Panelboards
• Standard: CE Marked
