Bussmann frnr1/2

Overview

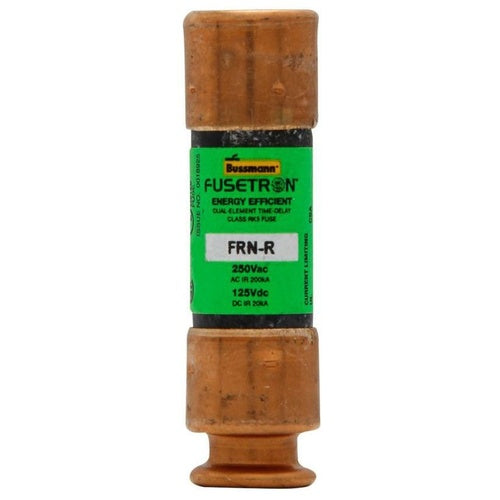

Bussmann FusetronTM FRN-R-1/2 Current Limiting Time Delay Fuse, 500 mA, 250 V AC/125 V DC, 200/20 kAIC Interrupt, RK5 Class, Cylindrical Body

Product Specifications

• Catalog Number: FRN-R-1/2
• Manufacturer Brand: Eaton Bussmann series
• UNSPSC: 39121606
• Features: Provides motor overload, ground fault and short circuit protection; Helps protect motors against burnout from overloads; Helps protect motors against burnout from 1 ph on 3 ph systems; Simplifies and improves blackout prevention (selective co-ordination ratios); Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection; The overload element provides protection against low level overcurrent of overloads and will hold an overload which is 5X greater than the amperage rating of the fuse for a minimum of 10 s
• Amperage Rating: 500 mA
• Body Size: 0.56 in Dia x 2 in L
• Body Type: Cylindrical
• Class: RK5
• Country of Origin: Mexico
• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Interrupt Rating: 200/20 kAIC
• Material: Fiberglass
• Mounting Type: Holder
• Rejection/Non-Rejection: Rejection
• Response Time: 10 s at 500%
• Series: FRN-R
• Terminal Type: Ferrule End
• Type: Current Limiting Time Delay
• Voltage Rating: 250 V AC/125 V DC | 250 VAC/125 VDC
