Bussmann frnr15

Overview

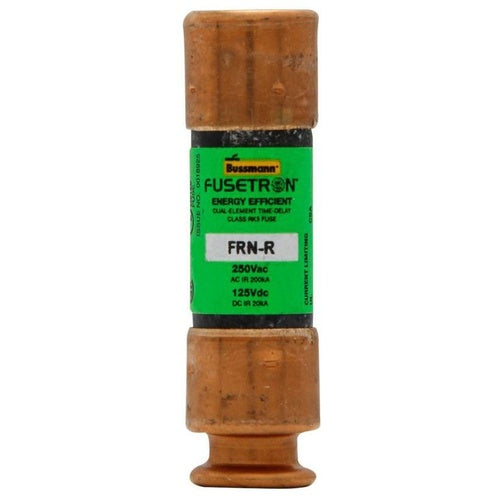

FRNR15 - 15A 250V TD Class RK5 Dual Elem Fuse-Fusetron

Product Specifications

• Catalog Number: FRNR15
• UPC / GTIN: 051712101745
• Manufacturer: Eaton Bussmann Series
• UNSPSC: 39121606 - Cartridge fuses
• Full Technical Description: Time Delay Fusetron Fuse, RK5 Class Fuse, Dual Element Fuse, 8 s @ 500% Response Time, Ferrule End x Ferrule End Connection, 15 A, 250 V ac;125 V dc, Ferrule Terminal, 0.56 in Diameter, 2 in Overall Length, 0.05 lb
• Amperage Rating: 15
• Connection: Ferrule End X Ferrule End
• Current Rating: 15 A
• Interrupt Rating: 200 kAIC (RMS Symmetrical):20 kAIC (DC)
• Terminal Type: Ferrule
• Voltage Rating: 250 V ac;125 V dc
• Diameter: 0.56 in
• Overall Length: 2 in
• Size: 0.56 In Diameter X 2.00 In Length
• Description: 15A 250V TD CLASS RK5 DUAL ELEM FUSE-FUSETRON
• Extra Long Description: BUSS FRN-R-15 FUSETRON DUAL-ELEMENT
• Features: Eaton Bussmann(R) series advanced protection, energy efficient FRN-R Class RK5 dual element, current-limiting, time-delay fuses with optional open fuse indication on select ratings. Time-delay – 10 seconds (minimum) at 500% of rated current (8 seconds for 110-30A sizes).
• Long Description: Time Delay Fusetron Fuse, RK5 Class Fuse, Dual Element Fuse, 8 s @ 500% Response Time, Ferrule End x Ferrule End Connection, 15 A, 250 V ac;125 V dc, Ferrule Terminal, 0.56 in Diameter, 2 in Overall Length, 0.05 lb
• Product Type: Time Delay Fusetron Fuse
• Short Description: Fusetron Fuse, 15 A, 250 VAC/125 V dc, Time Delay, RK5 Class
• Connection Type: Ferrule End x Ferrule End
• Dimensions: 2.0000 IN X 0.5600 IN X 0.5600 IN
• Element: Dual
• Fuse Class: RK5 Class
• Fuse Type: Dual Element
• Made In USA: yes
• Package Quantity: 10 CT
• Response Time: 8 s @ 500%
• Standards Met: UL Listed;STD. 248-12;Class RK-5, Guide JDDZ, File E4273;CSA Certified;C22.2 No. 248.12, Class 1422-02, File 53787;CE Certified
• Brand: Eaton
• Manufacturers Part Number: FRN-R-15
• GTIN: 00051712101745
• UPC: 051712101745
• Type: FUSE
• Weight: 0.05 lb
• Weight per each: 0.05
• Carton: 10
• Application: Combination Starters;Motor Control Centers;Machinery Disconnects;Power Panelboards
• Standard: CE Marked
