Bussmann frnr200

Overview

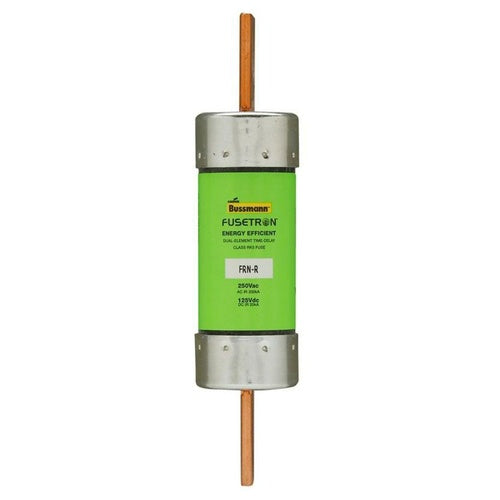

FRNR200 - 200A 250V TD Class RK5 Dual Elem Fuse-Fusetron

Product Specifications

• Catalog Number: FRNR200
• UPC / GTIN: 051712101899
• Manufacturer: Eaton Bussmann Series
• UNSPSC: 39121606 - Cartridge fuses
• Full Technical Description: Time Delay Fusetron Fuse, RK5 Class Fuse, Dual Element Fuse, 10 s @ 500% Response Time, Blade End x Blade End Connection, 200 A, 250 V ac;125 V dc, Blade Terminal, 1.56 in Diameter, 7.13 in Overall Length, 0.79 lb
• Amperage Rating: 200
• Connection: Blade End X Blade End
• Current Rating: 200 A
• Interrupt Rating: 200 kAIC (RMS Symmetrical):20 kAIC (DC)
• Terminal Type: Blade
• Voltage Rating: 250 V ac;125 V dc
• Diameter: 1.56 in
• Overall Length: 7.13 in
• Size: 1.56 In Diameter X 7.13 In Length
• Description: 200A 250V TD CLASS RK5 DUAL ELEM FUSE-FUSETRON
• Extra Long Description: BUSS FRN-R-200 FUSETRON DUAL-ELEMEN
• Features: Eaton Bussmann(R) series advanced protection, energy efficient FRN-R Class RK5 dual element, current-limiting, time-delay fuses. Time-delay – 10 seconds (minimum) at 500% of rated current.
• Long Description: Time Delay Fusetron Fuse, RK5 Class Fuse, Dual Element Fuse, 10 s @ 500% Response Time, Blade End x Blade End Connection, 200 A, 250 V ac;125 V dc, Blade Terminal, 1.56 in Diameter, 7.13 in Overall Length, 0.79 lb
• Product Type: Time Delay Fusetron Fuse
• Short Description: Fusetron Fuse, 200 A, 250 VAC/125 V dc, Time Delay, RK5 Class
• Connection Type: Blade End x Blade End
• Dimensions: 1.0000 IN X 1.0000 IN X 1.0000 IN
• Element: Dual
• Fuse Class: RK5 Class
• Fuse Type: Dual Element
• Made In USA: yes
• Package Quantity: 1 ct
• Response Time: 10 s @ 500%
• Standards Met: UL Listed;STD. 248-12;Class RK-5, Guide JDDZ, File E4273;CSA Certified;C22.2 No. 248.12, Class 1422-02, File 53787;CE Certified
• Brand: Eaton
• Manufacturers Part Number: FRN-R-200
• GTIN: 00051712101899
• UPC: 051712101899
• Type: FUSE
• Weight: 0.79 lb
• Weight per each: 0.79
• Carton: 1
• Application: Combination Starters;Motor Control Centers;Machinery Disconnects;Power Panelboards
• Standard: CE Marked
