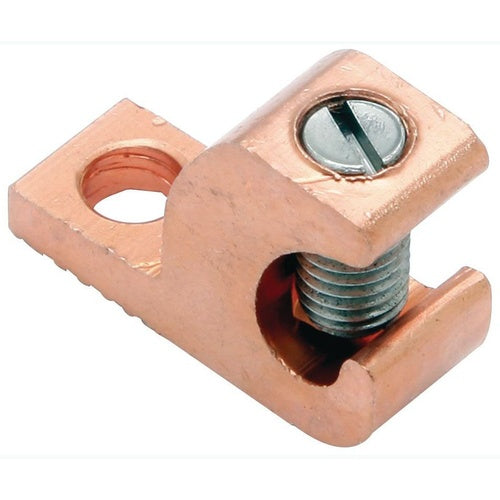

Burndy CL501 Direct Burial Lug

Overview

Burndy CL501 Direct Burial Lug

Product Specifications

• UPC: 78181027615
• Screw Type: 1/4 Inch-28 TPI Slot
• Material: Copper Alloy
• Number Of Pad Holes: 1
• Pad Size: 0.38 Inch Width x 0.2 Inch Thickness
• Stud Size: #10
• Overall Length: 1.13 Inch
• Approval: UL 467, UL (Canada and US), CSA
• Additional Information: RoHS Compliant; Temperature Rating 90 Deg C; Application Direct Burial
• Catalog Number: CL501
• Brand Name: Burndy
• Model: CL
• Type: Open Faced, Lay-In
• Number Of Conductors: 1
• Minimum Conductor Size: 14 AWG Solid/Stranded
• Maximum Conductor Size: 4 AWG Solid/Stranded
• Conductor Material: Copper
• Catalog Description: COPPER LAY-IN LUG, 14-4 AWG, #10 STUD.
• Category: Small Terminals & Connectors
• Full Technical Description: Open Faced, Lay-in Type; Copper Alloy Material; 1.13 Inch Overall Length; 14 AWG Solid/Stranded min. Conductor Size; 4 AWG Solid/Stranded Max. Conductor Size; Copper Conductor Material; UL 467, UL (Canada and Us), CSA Approval; 1 Conductor(S); #10 Stud Size; 0.38 Inch Width X 0.2 Inch Thickness Pad Size; 1 Pad Hole(S); 1/4 Inch-28 TPI Slot Screw Type; Qiklug Brand; RoHS Compliant; Temperature Rating 90 Deg C; Application Direct Burial; CL Model
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 781810276150
• SKU Name: cl501 burndy
