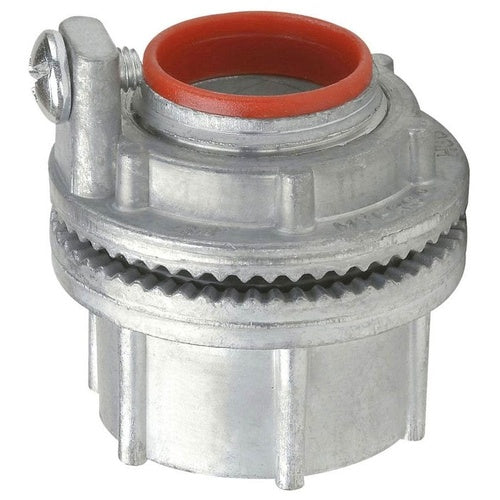

Crouse-Hinds STG1 1/2" Zinc Insulated Ground Hub

Overview

High-capacity crushing capability, Durable steel construction for extended lifespan, Energy-efficient operation, Easy-to-use control panel, Modular design for quick maintenance

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES MYERS GROUND HUB, ZINC, 1/2"
• Full Technical Description: Female Threaded Type; Natural Zamak 2/3 Zinc (Body/Nut), Nitrile (O-ring Gasket), Steel/Stainless Steel (Screw) Material; 1.435 Inch X 1.435 Inch X 1.755 Inch Size; Rigid/Imc Conduit Used on; UL 514B, CUL, CSA C22.2 Approval; Grounding Screw; 1/2 Inch Trade Size; NEMA 2/3/3R/4/4X/12, IP66, Vibrationproof, Chemical Resistance, Water Tight, Dust Tight; Lexan Insulated Throat Type; MYERS[TM], SCRU-TITE[R] Brand; Enclosure Type Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2, Class I Zone 1 Aex E II, Class I Zone 1 Ex E II; Application Hazardous Location; Applicable Standard Nec/Cec, IEC
• Manufacturer: EATON CROUSE-HINDS MYERS HUBS
• Sub Category: Rigid/EMT Conduit Hub
• Unspsc: 39121311
• UPC 12 Digit: 784731100931
• SKU Name: CRSH STG1
