Crouse-Hinds vmvs2tw070gp/mt

Overview

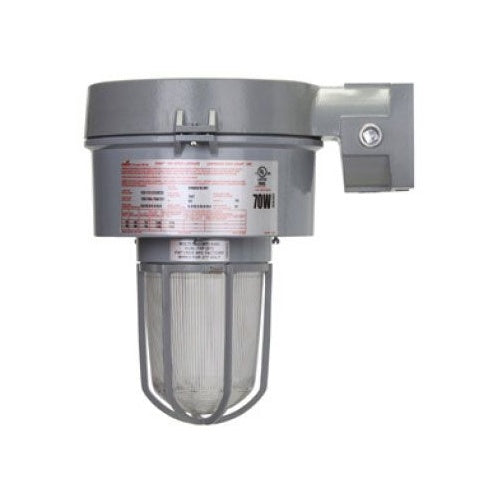

Crouse-Hinds Champ® VMVS2TW070GP/MT Through Feed HID Light Fixture, 120 V, Epoxy Powder Coated Housing

Product Specifications

• Catalog Number: VMVS2TW070GP/MT
• UPC / GTIN: 782274105123
• Manufacturer Brand: Eaton Crouse-Hinds series
• UNSPSC: 39111524
• Features: Compact, lightweight design is ideal for medium and low mounting heights; Cast copper-free aluminum construction (less than 0.4 of 1% copper) and epoxy powder finish provide excellent resistance to corrosion; Hinged ballast housing for ease of installation and maintenance; All luminaires are designed to perform in a 40 deg C ambient temperature selected luminaires are suitable for ambient temperatures up to 65 deg C; Superior gasketing seals between the mounting module, housing and optical assembly for optimum performance in wet and corrosive environments; Hubs with an integral conduit stop and bushing to help prevent damage to field wiring during installation; Low ambient capability to -40 deg C; Dome and 30 deg angle reflectors made of bright white Krydon material provide superior reflectivity, with twist-on feature requiring no tools or additional hardware; will not chip, peel, dent, rust or corrode; Grounding wire for safety; Mogul base porcelain lamp socket
• Ballast Type: Multi-Tap
• Country of Origin: United States of America (the)
• Dimensions: 13-13/16 in W x 13-7/8 in H
• Enclosure Type: NEMA 3/3R/4/4X/IP66
• Housing Finish: Epoxy Powder Coated
• Housing Material: Copper-Free Aluminum
• Lamp Type: High Pressure Sodium
• Lamp Wattage: 70 W
• Mounting Type: Wall
• Series: VMV
• Type: Through Feed
• Voltage Rating: 120 V
