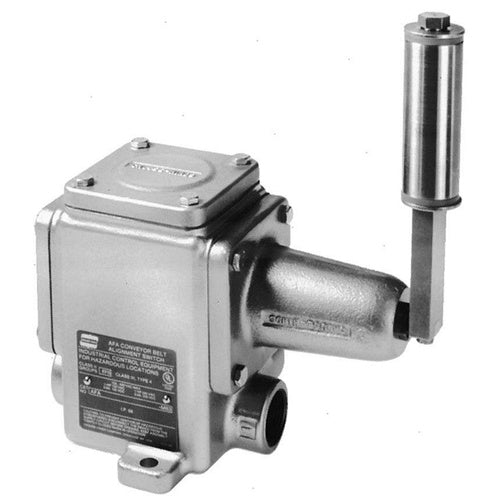

Crouse-Hinds AFAX20 Conveyor Alignment Switch

Overview

Crouse-Hinds AFAX20 Conveyor Alignment Switch

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES AFAX CONVEYOR BELT ALIGNMENT SWITCH, 15A, TWO NORMALLY CLOSED, FERALOY IRON ALLOY, 600 VAC
• Full Technical Description: Roller Style Type; 2NO-2NC Contact Configuration; Feraloy Iron Alloy Enclosure Material; UL 698, CSA C22.2 Approval; 600 VAC Voltage Rating; 1-1/2 Inch on Center Lug Mounting; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7C/7D/9E/9F/9G Enclosure; 15 Ampere Current Rating; 85 Deg Operating Temperature; Stainless Steel Spring Loaded Arm With Roller Operator Type; Electrogalvanized Aluminum Acrylic Painted Enclosure Finish; Vertical Operating Position; (3) 1 Inch Hub Cable/Conduit Entry; 3-1/2 Inch Dia (Roller) Operator Size; AFAX Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conveyor Belt Alignment Switch
• Unspsc: 39122205
• UPC 12 Digit: 782274273129
• SKU Name: crsh afax20
