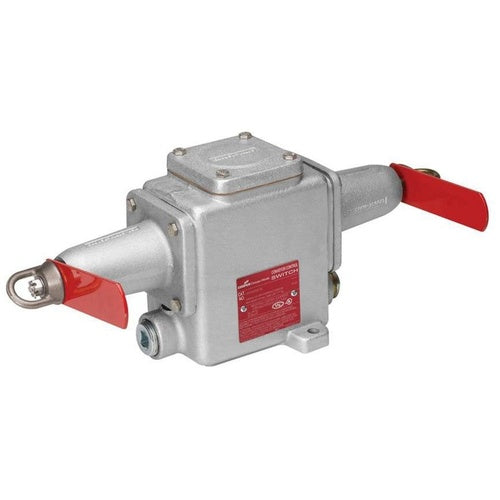

Crouse-Hinds AFU0333-66 Conveyor Control

Overview

Crouse-Hinds AFU0333-66 Conveyor Control

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES AFU CONVEYOR BELT CONTROL SWITCH, 15A, TWO NORMALLY OPEN/TWO NORMALLY CLOSED, FERALOY IRON, 50 LB TOTAL OPER FORCE, DOUBLE END, 25 LB WITHOUT SWITCH, (3) 1" HUBS
• Full Technical Description: Double End Type; 18.28 Inch L X 9.5 Inch D X 4-15/16 Inch H Size; 25 lb Max. Unsupported Line Weight; 2NO-2NC (Each End) Contact Configuration; Maintained Operation Type; UL 698, CSA 22.2 Approval; Wet Location Application; 600 VAC Voltage Rating; (3) 1-1/2 Inch on-Center Lug Mounting; Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/9E/9F/9G, IP66 Enclosure; 15 Ampere Current Rating; Feraloy Iron Alloy Body Material; Plunger Operator Type; Electrogalvanized Aluminum Acrylic Painted Body Finish; 50 lb Operating Force; (3) 1 Inch Hub Cable/Conduit Entry; AFU Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conveyor Control Switch
• Unspsc: 39122205
• UPC 12 Digit: 782274047096
• SKU Name: crsh afu033366

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
