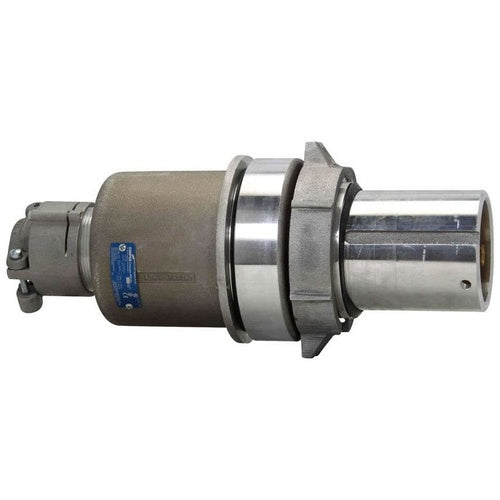

Crouse-Hinds AP204511 4W-4P 200A Plug

Overview

Crouse-Hinds AP204511 4W-4P 200A Plug

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE AP PLUG, 200A, 1.375-1.875", FOUR-WIRE, FOUR-POLE, 50-400 HZ, STYLE 1, COPPER-FREE ALUMINUM, CRIMP/SOLDER, 600 VAC/250 VDC, 0.75" MAX
• Full Technical Description: Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder Type; Natural Finished Copper Free Aluminum Material; 1.375 Inch min. Cable Outer Diameter; 1.875 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 200 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Moisture Resistant, Weatherproof; 1, Shell Grounding Style; ARKTITE[R] Brand; Size 14-3/4 Inch L X 6-3/4 Inch W; Enclosure NEMA 3R; Application Chemical Plant, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Process Industry; Includes Cable Grip, Neoprene Bushing; AP Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 782274190945
• SKU Name: crsh ap204511

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
