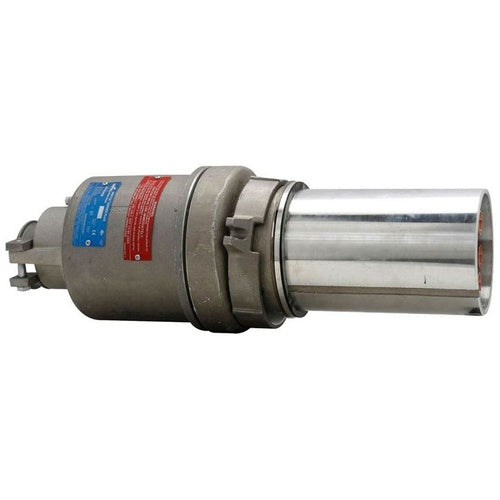

Crouse-Hinds AP403510 3W3P 400A 600V Plug

Overview

Crouse-Hinds AP403510 3W3P 400A 600V Plug

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE AP PLUG, 400A, 2.5-3.0", THREE-WIRE, THREE-POLE, 50-400 HZ, STYLE 1, COPPER-FREE ALUMINUM, PLUG, 600 VAC/250 VDC, 1.25"
• Full Technical Description: Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder Type; Natural Finished Copper Free Aluminum Material; 2.5 Inch min. Cable Outer Diameter; 3 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 400 Ampere Current Rating; 3 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Moisture Resistant; 1, Shell Grounding Style; ARKTITE[R] Brand; Size 20-1/2 Inch L X 8 Inch W; Application Chemical Plant, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Process Industry; Includes Cable Grip, Neoprene Bushing; AP Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 782274046051
• SKU Name: crsh ap403510

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
