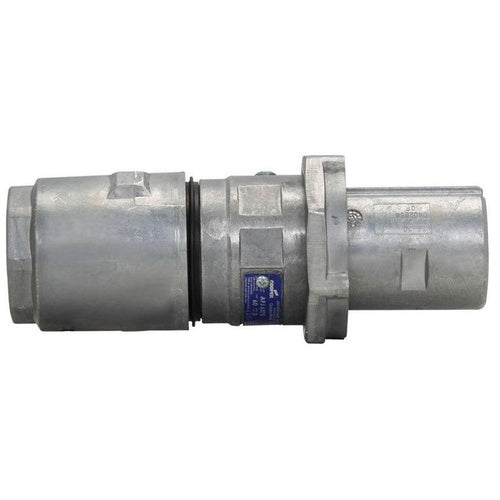

Crouse-Hinds APJ6375 3W-3P Plug

Overview

Crouse-Hinds APJ6375 3W-3P Plug

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE APJ PLUG, 60A, 0.50-1.45", THREE-WIRE, THREE-POLE, 50-400 HZ, STYLE 1, COPPER-FREE ALUMINUM, 600 VAC/250 VDC
• Full Technical Description: Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder, Exposition, With Fastening Ring Type; Natural Copper-Free Aluminum Material; 0.75 Inch min. Cable Outer Diameter; 1.45 Inch Max. Cable Outer Diameter; 3 Wire(S); UL 1203/1682/1686, CSA C22.2, CE Approval; 600 Volt AC at 50 to 400 Hertz, 250 Volt DC Voltage Rating; 60 Amp Current Rating; 3 Pole(S); Corrosion Resistant, Dirt Tight, Dust Tight, Water Tight, Moisture Resistant, Weatherproof; 1, Shell Grounding Style; ARKTITE[R] Brand; Overall Dimension 8-1/2 Inch Length X 3-5/8 Inch Width; Enclosure Rating NEMA 4; Includes Cable Grip, Neoprene Bushing; Application Chemical Plant, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Process Industry; APJ Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 782274049205
• SKU Name: crsh apj6375

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
