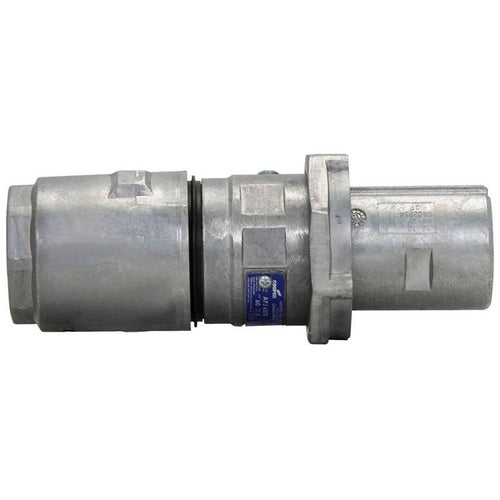

Crouse-Hinds APJ6475-S22 60A 4Wr 4P Plug

Overview

Crouse-Hinds APJ6475-S22 60A 4Wr 4P Plug

Product Specifications

• Full Technical Description: Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder Type; Natural Finished Copper Free Aluminum Material; 0.5 Inch min. Cable Outer Diameter; 1.45 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1203/1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 60 Ampere Current Rating; 4 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Watertight, Moisture Resistant; 1, Shell Grounding Style; ARKTITE[R] Brand; Size 8-1/2 Inch L X 3-3/4 Inch W; Enclosure NEMA 4; Application Chemical Plant, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Process Industry; Includes Cable Grip, Neoprene Bushing; APJ Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Plug
• UPC 12 Digit: 782274585284
• SKU Name: crsh apj6475s22

Resources

• Manufacturer Spec Sheet
