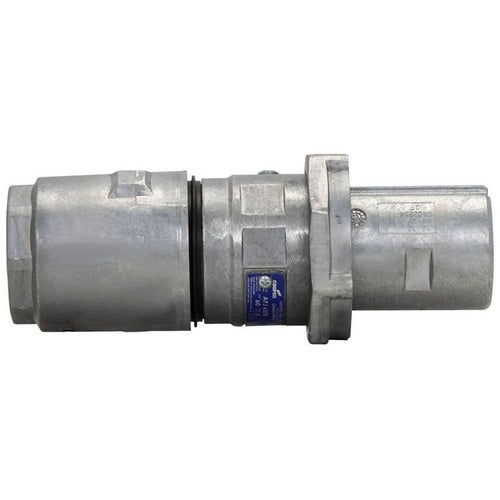

Crouse-Hinds APJ6585 4W-5P Plug

Overview

Crouse-Hinds APJ6585 4W-5P Plug

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE APJ PLUG, 60A, 0.75-1.45", FOUR-WIRE, FIVE-POLE, 50-400 HZ, STYLE 2, COPPER-FREE ALUMINUM, 600 VAC/250 VDC
• Full Technical Description: Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder Type; Natural Finished Copper Free Aluminum Material; 0.75 Inch min. Cable Outer Diameter; 1.45 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1203/1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 60 Ampere Current Rating; 5 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Watertight, Moisture Resistant; 2, Shell, Extra Pole Grounding Style; ARKTITE[R] Brand; Size 9 Inch L X 4-7/16 Inch W; Enclosure NEMA 4; Application Chemical Plant, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Process Industry; Includes Cable Grip, Neoprene Bushing; APJ Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 782274050454
• SKU Name: crsh apj6585
