Crouse-Hinds APR3255 2W-2P Receptacle

Overview

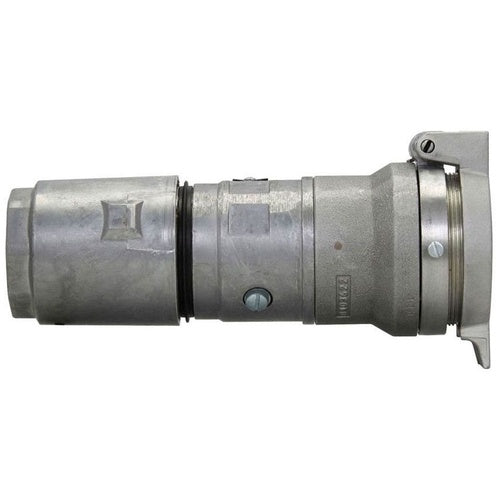

Crouse-Hinds APR3255 2W-2P Receptacle

Product Specifications

• Catalog Description: 30 AMP 2 WIRE 2 POLE ARKTITE CAB CONNECT RECEPTACLE .39 TO 1.20
• Full Technical Description: Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder Type; Natural Finished Copper Free Aluminum Material; 0.87 Inch min. Cable Outer Diameter; 1.02 Inch Max. Cable Outer Diameter; 2 Wire(S); UL 1682/1686, CSA C22.2, CE Approval; 600 VAC at 50 to 400 Hz, 250 VDC Voltage Rating; 30 Ampere Current Rating; 2 Pole(S); Corrosion Resistant, Dirttight, Dusttight, Watertight, Moisture Resistant; 1, Shell Grounding Style; ARKTITE[R] Brand; Size 8-1/4 Inch L X 2-9/16 Inch W; Enclosure NEMA 4; Application Chemical Plant, Compressor, Conveyor, Heating and Cooling Unit, Lighting System, Manufacturing Plant, Meat Packing Plant, Motor Generator Set, Process Industry, Welder; APR Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121402
• UPC 12 Digit: 782274053936
• SKU Name: crsh apr3255

Resources

• Manufacturer Spec Sheet
